Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

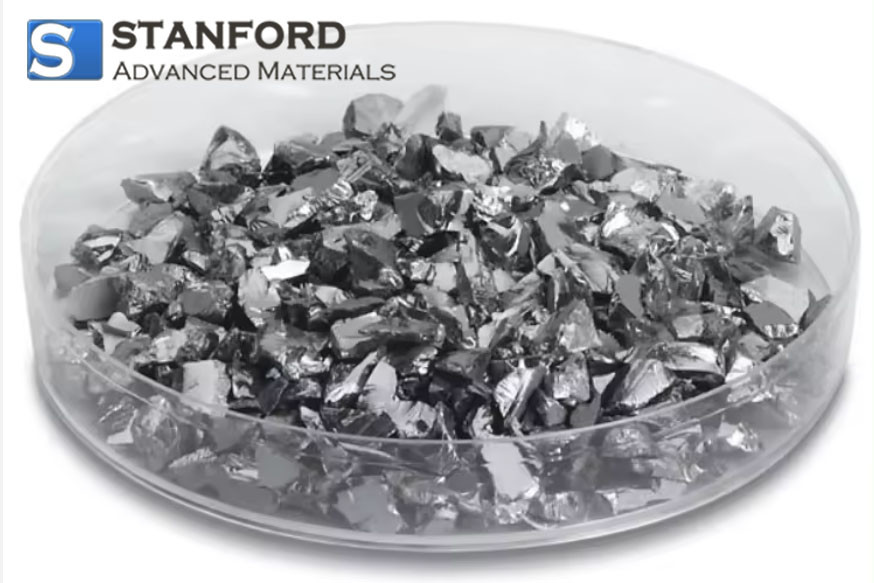

Silicon (Si) (N-type) Evaporation Materials
Description
Silicon is a metalloid and carries the typical properties of both metals and nonmetals. It is extremely inert and insoluble in water and acids. However, it can be dissolved into silicates by hot alkaline lyes. Pure silicon forms dark gray, metallic, shiny crystals. Silicon also has excellent thermal conductivity, which – in pure silicon – is accompanied by extremely low electrical conductivity. When alloyed with aluminium, it enhances strength and reduces weight.
High purity evaporation materials play a huge role in deposition processes to ensure high quality deposited film. Stanford Advanced Materials (SAM) specializes in producing up to 99.999% purity silicon evaporation materials using quality assurance processes to guarantee product reliability.
Silicon (Si) (N-type) Evaporation Materials Specification
|
Material |
Silicon |
|
Atomic Weight |
28.0855 |
|
Color/Appearance |
Dark Gray with a Bluish Tinge, Semi-Metallic |
|
Thermal Conductivity |
150 W/m.K |
|
Melting Point (°C) |
1,410 |
|
Bulk Resistivity |
0.005-0.020 OHM-CM |
|
Coefficient of Thermal Expansion |
2.6 x 10-6/K |
|
Theoretical Density (g/cc) |
2.32 |
|
Z Ratio |
0.712 |
|
Temp. (°C) for Given Vap. Press. (Torr) |
10^-8: 992 10^-6: 1,147 10^-4: 1,337 |
Silicon (Si) (N-type) Evaporation Materials Applications
1. Solar Cell Manufacturing: N-type Silicon Evaporation Materials are frequently used in the production of solar cells, particularly in thin-film solar cells. They allow for the deposition of thin, uniform layers of silicon on substrates, which convert sunlight into electricity. Using N-type silicon in solar cells can enhance their efficiency and performance.
2. Semiconductor Manufacturing: Silicon is the fundamental material in the semiconductor industry. N-type Silicon Evaporation Materials are used to deposit silicon layers on wafers during the manufacturing process of transistors, integrated circuits, and other semiconductor devices. These materials enable precise control over the thickness and uniformity of the silicon layers, crucial for the performance of the final devices.
3. Optical Coatings: Silicon evaporation materials can also be used to deposit thin films on optical components, such as mirrors, lenses, and filters. These coatings can enhance the reflectivity, transmittance, or absorption properties of the optical components, improving their performance in various applications, including lasers, spectroscopy, and imaging systems.
4. Thin-Film Transistors (TFTs): N-type Silicon Evaporation Materials are essential in producing thin-film transistors, which are used in flat-panel displays such as LCDs and OLEDs. The silicon layers deposited using these materials serve as the semiconducting channel in the transistors, controlling the flow of electric current and enabling the display of images.
5. Microelectronics and Nanoelectronics: In the field of microelectronics and nanoelectronics, N-type Silicon Evaporation Materials are used to create nanoscale structures and devices. These materials enable the precise deposition of silicon on substrates, enabling the development of miniaturized electronic components and systems with improved performance.
Silicon (Si) (N-type) Evaporation Materials Packaging
Our evaporation materials are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
