Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.
Description:

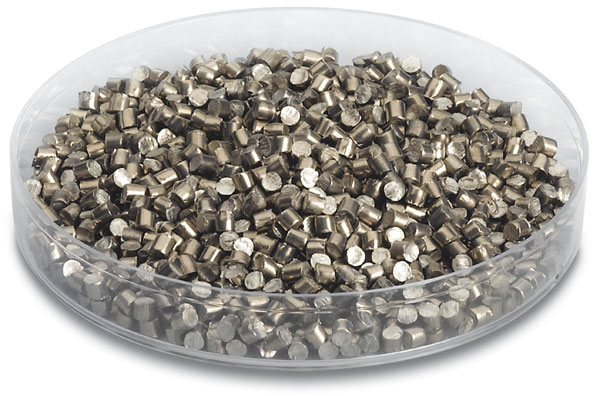

High purity evaporation materials play a huge role in deposition processes to ensure high quality deposited film. Stanford Advanced Materials (SAM) specializes in producing up to 99.5% purity zirconium evaporation materials using quality assurance processes to guarantee product reliability.
Applications:
• Used in deposition processes including semiconductor deposition, chemical vapor deposition (CVD) and physical vapor deposition (PVD)
• Used for optics including wear protection, decorative coatings, and displays.
Packaging:
Our evaporation materials are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
|
Material Type |
Zirconium |
|
Symbol |
Zr |
|
Atomic Weight |
91.224 |
|
Atomic Number |
40 |
|
Color/Appearance |
Silvery White, Metallic |
|
Thermal Conductivity |
22.7 W/m.K |
|
Melting Point (°C) |
1,852 |
|
Coefficient of Thermal Expansion |
5.7 x 10-6/K |
|
Theoretical Density (g/cc) |
6.49 |
|
Z Ratio |
0.6 |
|
E-Beam |
Excellent |
|
Thermal Evaporation Techniques |
Boat: W |
|
Temp. (°C) for Given Vap. Press. (Torr) |
10-8: 1,477 10-6: 1,702 10-4: 1,987 |
|
Comments |
Alloys with W. Films oxidize readily. |
|
Purity |
99% ~ 99.5% |
|
Shape |
Powder/ Granule/ Custom-made |
