Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

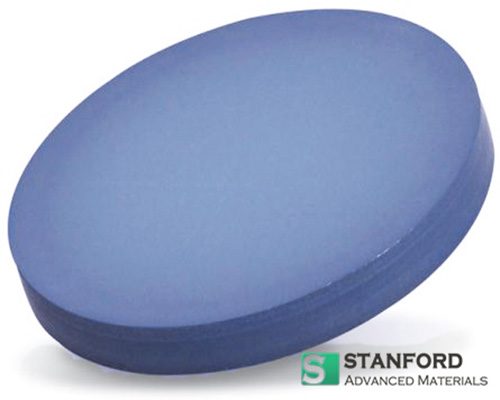

Lanthanum Sputtering Target
Specification
|
Material Type |
Lanthanum |
|
Symbol |
La |
|
Color/Appearance |
Solid |
|
Melting Point |
927 °C |
|
Type of Bond |
/ |
|
Density |
7.3 g/cc |
|
Thermal Conductivity |
6.17 W/m.K |
|
Coefficient of Thermal Expansion |
12.1 x 10-6/K |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″ |
We also offer other customized shapes and sizes of the sputtering targets, please send us an inquiry for more information.
Lanthanum Sputtering Target Description
Stanford Materials Corporation (SMC) is a market-leading manufacturer and supplier of sputtering targets and thin film coating materials. SMC has the capability to manufacture different sputtering target configurations with various production techniques and raw materials to meet sputtering equipment specifications and process requirements. All materials provided by SMC are furnished with a Certificate of Analysis stipulating exact purity and trace elements present in the product.
|
Purity |
99.9% |
|
Shape |
Disc Targets, Plate Targets, Column Targets, Step Targets, Custom-made |
|
Size |
Circular: Diameter < 14inch, Thickness > 1mm; Block: Length < 32inch, Width < 12inch, Thickness > 1mm |
Lanthanum Sputtering Target Application
The lanthanum sputtering target is used for thin film deposition, decoration, semiconductor, display, LED and photovoltaic devices, functional coating as nicely as other optical information storage space industry, glass coating industry like car glass and architectural glass, optical communication, etc.
Major applications of lanthanum include:
- An alloying agent for steels and cast irons
- Hybrid car batteries
- In cigarette lighter flints in the form of Mischmetal (an alloy primarily consisting of cerium and lanthanum)
- Carbon arc lighting used in mation pictures, studio lighting and projection
Packaging
Our lanthanum sputter targets are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
