Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

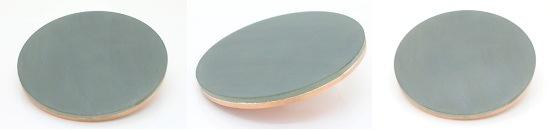

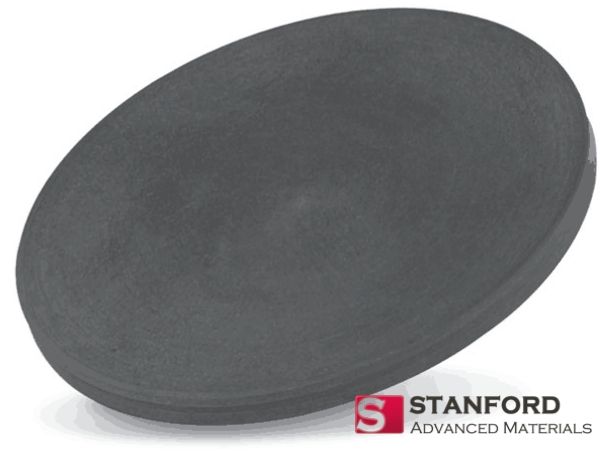

Lithium Iron Phosphate Sputtering Target, LiFePO4
Lithium Iron Phosphate Sputtering
Target Description
Lithium iron phosphate sputtering target is a mixed oxide ceramic sputtering target, usually made by high-temperature sintering/recrystallization of oxide mixture of Li and Fe. Lithium iron phosphate is a gray, red-grey, brown or black solid that is insoluble in water. It has very special physical properties and has special applications in the electronics, superconductivity, and optical industries.
Lithium Iron Phosphate Sputtering Target Specification
|
Material Type |
Lithium Iron Phosphate Sputtering Target |
|
Symbol |
LiFePO4 |
|
Color/Appearance |
Metallic, Solid |
|
Melting Point |
>300 °C |
|
Sputter |
RF, RF-R, DC |
|
Type of Bond |
Indium, Elastomer |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″ |
Lithium Iron Phosphate Sputtering Target Applications
Lithium Iron Phosphate (LiFePO4) sputtering targets find applications in various fields, especially in the development of lithium-ion batteries and energy storage systems. These targets are crucial for depositing thin films of LiFePO4 on substrates. LiFePO4 is known for its stability, high energy density, and safety, making it a popular choice for rechargeable batteries.
Lithium Iron Phosphate Sputtering Target Bonding Services
Indium bonding and Elastomer bonding are available for the LiFePO4 sputtering materials. Stanford Advanced Materials is devoted to machining standard backing plates and working together with the Taiwan Bonding Company to provide bonding services. .
Lithium Iron Phosphate Sputtering Target Packing
Our lithium iron phosphate sputter targets are tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
