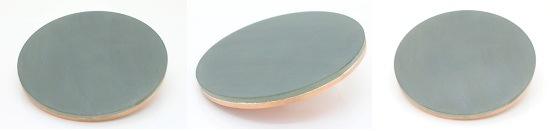

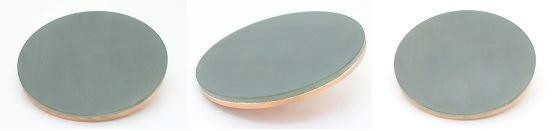

Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

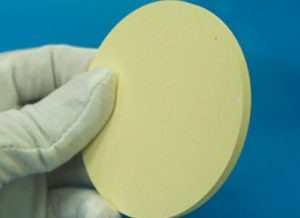

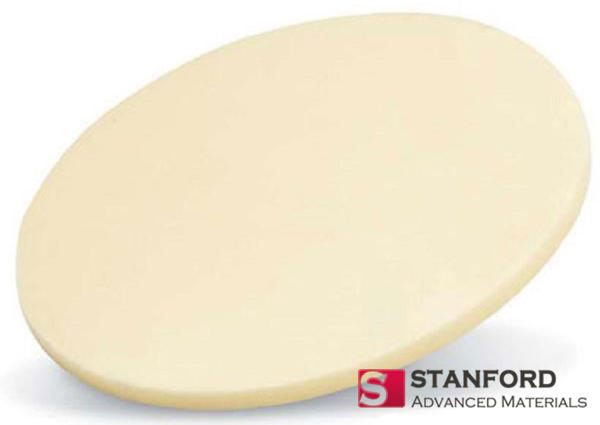

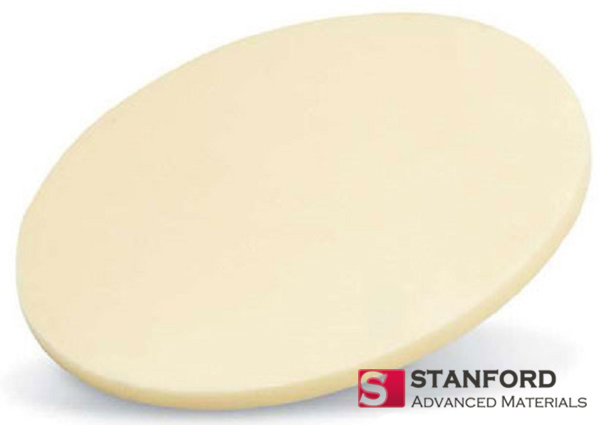

Indium Zinc Oxide Sputtering Target, IZO
Indium Zinc Oxide Sputtering Target
Description
Indium zinc oxide sputtering target from Stanford Advanced Materials is an oxide sputtering material containing In, Zn and O.
Indium zinc oxide (IZO) is a chemical compound that consists of indium and zinc metals and oxygen. Indium Zinc Oxide, IZO Sputtering Targets can be used in various applications by obtaining a film. It is a perspective electrode that can be applied to flexible display devices and solar cells as well as the conventional devices needing transparent conducting oxide films. It can also be deposited on polyethersulfone (PES) and glass substrates for OLED applications. After deposition of indium zinc oxide sputtering targets for OLED applications, OLEDs show superior current density and luminance characteristics.
Indium Zinc Oxide Sputtering Target Bonding Service
Indium Bonding and Elastomeric Target Bonding Service are available for indium zinc oxide sputtering target. Stanford Advanced Materials is devoted to machining standard backing plates and working together with the Taiwan Bonding Company for providing bonding services.
Indium Zinc Oxide Sputtering Target Specification
|
Material Type |
Indium Zinc Oxide |
|
Symbol |
IZO |
|
Color/Appearance |
Light yellow |
|
Melting Point |
1900-1920 °C |
|
Boiling Point |
N/A |
|
Density |
N/A |
|
Type of Bond |
Indium, Elastomer |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″ |
We also offer other customized shapes and sizes of the sputtering targets, please send us an inquiry for more information.
Indium Zinc Oxide Sputtering Target Packaging
Our indium zinc oxide sputter coater target is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation.
