Molybdenum Crucible
|
Catalog No. |
Mo-3N5-MC |
|---|---|
|
Size |
10-500mm OD x 10-600mm L |
|
Standard |
ASTM B387 |
|
Purity |
Mo≥99.95% |
|
Density |
9.8 – 10.2 g/cc |
|
Surface |
Finish turning, Polishing |
Molybdenum crucibles are available in various forms, purities, sizes, and prices. Stanford Advanced Materials (SAM) is a trusted sputtering target supplier, and we also manufacture evaporation materials and containers.

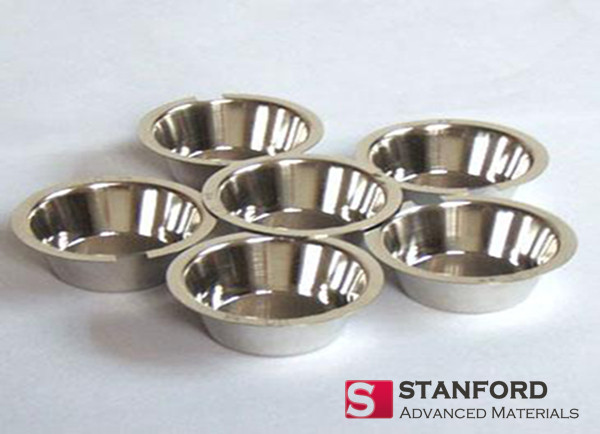

Molybdenum Crucible Description
Molybdenum crucible can be produced with sintering purposes (density of 9.8-10g/cc) or forging purposes (up to 10.2g/cc). Customized shapes for Mo crucibles include, but are not limited to, oval, tapered, bottomless, or round mouth.
Molybdenum crucibles can be used in LED Sapphire Crystal Growing and Chemical industry. SAM can provide customized molybdenum crucibles according to customer’s drawings. We can also provide solutions for your research. SAM has a vertically integrated supply chain with the capability to refine molybdenum powder, press and sinter ingots, roll input material for spinning, spinning to form, trim, and clean molybdenum and molybdenum alloy crucibles. SAM can manufacture a wide-range of diameter, height and thickness crucible sizes to suit our customers’ needs.
Molybdenum Crucible Specifications
|
Condition |
Size (mm) |
Tolerance (mm) |
||
|
Diameter (mm) |
Height (mm) |
Diameter (mm) |
Height (mm) |
|
|
Sintering |
10-500 |
10-600 |
+/-5 |
+/-5 |
|
Forging |
10-130 |
10-200 |
+/-1 |
+/-2 |
|
Material Type |
Molybdenum |
|
Symbol |
Mo |
|
Color/Appearance |
Grey, Metallic |
|
Melting Point |
2,617 °C |
|
Comments |
Films smooth, hard. Careful degas required. |
|
Density |
10280 kg/m3 |
Molybdenum Crucible Applications
With a high corrosion resistance to most acids and many molten materials such as glass or metals, molybdenum crucibles are ideal for the metallurgy, mechanism, and rare earth smelting industries. They can withstand vacuum thermal evaporation, nuclear fuel sintering, and capacitor sintering. Molybdenum Mo crucibles are also seeing an increased use in the growing high technology industry and in crystalloid materials.
Molybdenum Crucible Packaging
Our high performance molybdenum Mo crucibles are wrapped in foam and packaged in plywood cases to ensure safe storage and transportation.
