Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

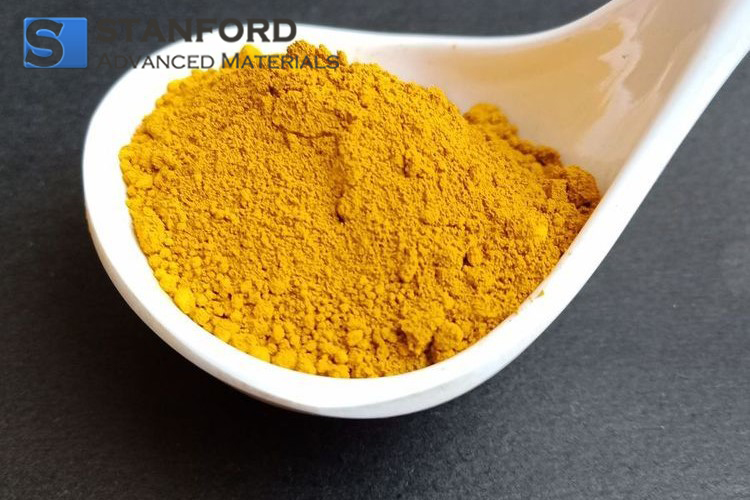

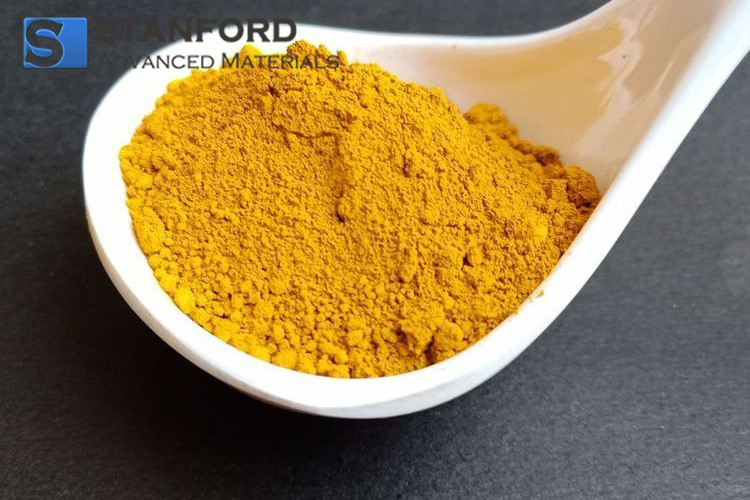

Cadmium Sulfide Evaporation Materials
Description
Cadmium sulfide evaporation material, provided by Stanford Advanced Materials, is a sulfide ceramic substance with the chemical formula CdS. High-purity CdS evaporation materials are instrumental in deposition processes, ensuring the creation of superior deposited films. Stanford Advanced Materials (SAM) specializes in producing these materials with an exceptional level of purity, reaching up to 99.9995%. This exceptional purity is achieved through stringent quality assurance processes, ensuring unparalleled product reliability.
Cadmium Sulfide Evaporation Materials Specification
|
Property |
Specification |
|---|---|
|
Material Type |
Cadmium sulfide |
|
Symbol |
CdS |
|
Appearance/Color |
Yellow-orange to brown solid |
|
Melting Point |
1,750 °C (3,180 °F; 2,020 K) at 10 MPa |
|
Density |
4.826 g/cm³ |
|
Purity |
99.9% ~ 99.999% |
|
Shape |
Powder/Granule/Custom-made |
Cadmium Sulfide Evaporation Materials Application
Cadmium sulfide evaporation materials find extensive applications in various deposition processes, including semiconductor deposition, chemical vapor deposition (CVD), and physical vapor deposition (PVD). They are particularly well-suited for optical applications, contributing to wear protection, decorative coatings, and displays.
Cadmium Sulfide Evaporation Materials Packing
To ensure efficient identification and quality control, cadmium sulfide evaporation materials are meticulously labeled and tagged externally. Stringent measures are taken during the packaging process to safeguard against any potential damage that might occur during storage or transportation, thus preserving the integrity of the product.
