Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

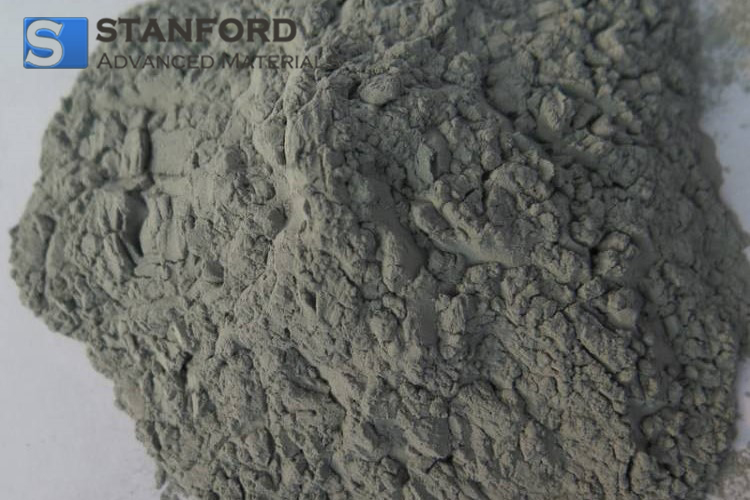

Niobium Nitride Evaporation Materials
Description
Niobium Nitride (NbN) Evaporation Materials are highly regarded for their exceptional superconducting properties, making them indispensable in cutting-edge applications. With a transition temperature among the highest of any known material, NbN exhibits superconductivity at relatively high temperatures, enabling its use in quantum computing, superconducting electronics, and particle detection systems. Furthermore, NbN demonstrates excellent thermal stability, mechanical resilience, and chemical inertness, ensuring reliable performance in demanding environments. Overall, Niobium Nitride (NbN) Evaporation Materials play a pivotal role in advancing technology, offering unprecedented opportunities for innovation in various scientific and industrial fields.
Niobium Nitride Evaporation Materials Specifications
|
Specification |
Value |
|---|---|
|
Material Type |
Niobium Nitride (NbN) |
|
Symbol |
NbN |
|
Appearance/Color |
Silver Gray Solid |
|
Melting Point |
Approximately 2,522°C (4,552°F; 2,795 K) |
|
Density |
8.47 g/cm³ |
|
Purity |
99.9% |
|
Shape |
Pellet/Granule |
Niobium Nitride Evaporation Materials Applications
Quantum Computing: NbN is used in the fabrication of superconducting qubits, the building blocks of quantum computers, due to its high transition temperature and low dissipation, enabling stable quantum states and long coherence times.
2. Superconducting Electronics: NbN is employed in the development of superconducting electronics such as detectors, amplifiers, and microwave circuits, where its superconducting properties enable high-speed, low-noise performance for applications in communication, sensing, and imaging systems.
3. Particle Detection: NbN is utilized in superconducting transition edge sensors (TES) for particle detection in fields such as astrophysics, particle physics, and materials science, offering high sensitivity and resolution for detecting photons, electrons, and ions.
4. Magnetic Resonance Imaging (MRI): NbN-coated resonators are used in ultra-low field magnetic resonance imaging (MRI) systems, offering enhanced sensitivity and signal-to-noise ratio for imaging biological samples and materials at low magnetic fields.
5. Thin-Film Coatings: NbN thin films are applied as protective and decorative coatings on surfaces such as cutting tools, medical implants, and optical components, enhancing their durability, wear resistance, and corrosion resistance.
6. Cryogenic Engineering: NbN is employed in cryogenic applications such as cryogenic refrigerators and cryogenic detectors, where its superconducting properties enable efficient cooling and detection of low-energy particles and photons.
7. Energy Storage and Conversion: NbN-based materials are investigated for use in energy storage and conversion devices such as superconducting magnetic energy storage (SMES) systems and superconducting fault current limiters (SFCLs), offering high energy density and efficiency for grid stabilization and power distribution applications.
Niobium Nitride Evaporation Materials Packaging
To ensure the quality and integrity of our Niobium Nitride Evaporation Materials, we utilize specialized packaging techniques. We offer a variety of packaging options to suit your specific needs and preferences.
