Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

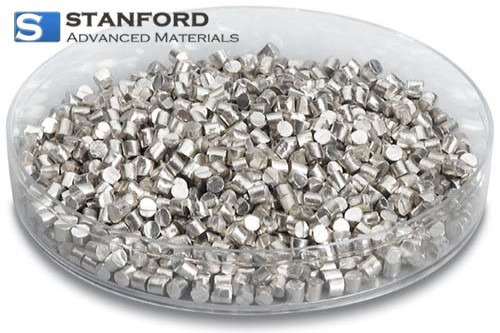

Indium (In) Evaporation Materials
Description:
Indium is a very soft, silvery-white, highly ductile, relatively rare metal with a bright luster. It is a single crystal with no pores. It is used in ITO film, solder in the electronic industry, sealing elements in low temperature and vacuum areas, solubility anode, and nuclear reactor control bars.
High-purity evaporation materials play a huge role in deposition processes to ensure high-quality deposited film. Stanford Advanced Materials (SAM) specializes in producing up to 99.999% purity indium evaporation materials using quality assurance processes to guarantee product reliability.
Indium (In) Evaporation Materials Specification:
|
Material |
Indium |
|
Appearance |
Silvery Lustrous Gray, Metallic |
|
Melting Point (°C) |
157 |
|
Thermal Conductivity |
82W/m.K |
|
Coefficient of Thermal Expansion |
32.1 x 10-6/K |
|
Theoretical Density (g/cc) |
7.3 |
Indium (In) Evaporation Materials Applications:
1. Semiconductor devices: Used in the preparation of conductive layers, metal connecting wires and soldering materials, e.g., in integrated circuits, solar cells and displays.
2. Liquid Crystal Displays: Used as electrode material for liquid crystal displays, e.g., in the preparation of LCD TVs, computer monitors and smartphone screens.
3. Vacuum Evaporation: Used as a raw material for vacuum evaporation, and preparation of thin films and coatings, e.g., in optical components, optical coatings and thin film resistors.
4. Soldering materials: Used as solder for electronic devices and electronic assemblies due to its low melting point and good soldering properties, e.g., in printed circuit boards and electronic devices.
5. Medical: Used as raw material for medical electrodes and implantable materials, e.g., in pacemakers and artificial joints.
Indium (In) Evaporation Materials Packaging:
Our evaporation materials are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
