Our equipment available for testing service

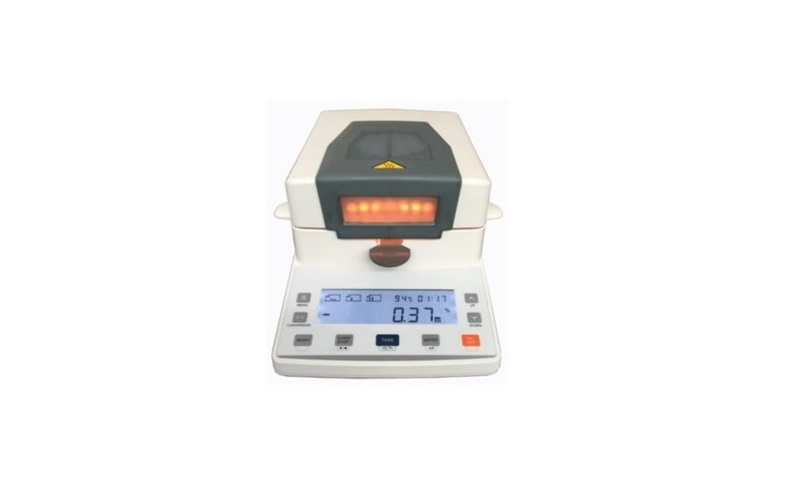

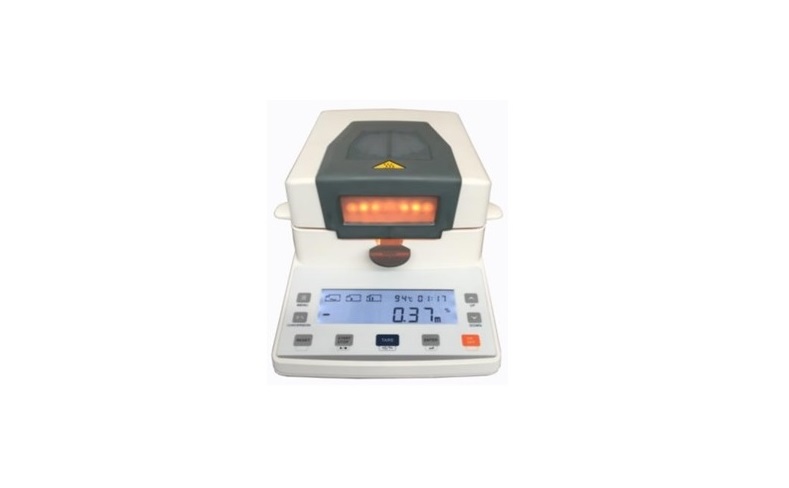

Halogen Moisture Analyzer (할로겐 수분측정기)


 Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.


  For powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food, meat, tobacco, tea, paper, grass, soil, sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.



Features

1. High accuracy: halogen moisture analyzer with fast and sensitive load cell.
2. Standard RS-232 interface: connect a PC or a printer.
3. Easy to operate: ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.
4. Three kinds of drying process

  • Standard Drying: The default setting, Suitable for most samples. The heating temperature can be set, the sample is heated to the set temperature, and remains on until test is automatically terminated.
  • Slow Drying: For sample with lower moisture content, easy to form the shell surface, flammable. It takes long time from initial heating temperature to a set value, User can select the heating time.
  • Fast drying: Suitable for higher moisture content samples. Can be set the heating temperature, Initial heating temperature exceeds a set value, Would later reduced to a set temperature and maintained until the test is automatically terminated.

5. Three shutdown mode: Automatic shutdown, manual shutdown, timed shutdown
6. Can be equipped with printer (with extra charge)
7. Provided 100g poise for calibration

  • Specification: 110g/1mg
  • Readability: 1mg
  • Moisture range: 0.00% ~ 100%
  • Readability accuracy: 0.01%
  • Dry residual range: 100.00% ~ 0.00%
  • Readability accuracy: 0.01%
  • Pan size: Φ 90mm
  • Heating mode:  Halogen lamp
  • Temperature Setting: 40℃~199℃
  • Temperature interval : 1°C
  • Time Setting: 1~99 minutes
  • Automatic shutdown: 0.1% ~ 9.9%within  1 min
  • ATRO: 100%~999%
  • ATRO: 0%~999%
  • History store: 15 groups
