Accurate and versatile

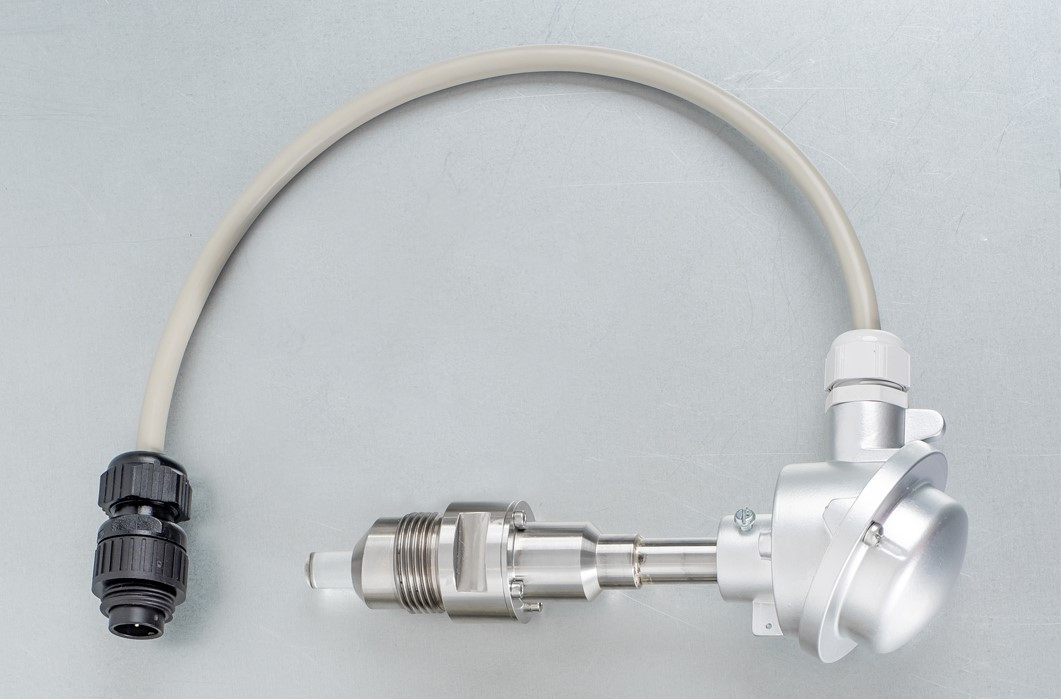

The core of the QVis viscosimeter is an oscillating quartz which is robust and versatile: with its wear-free crystal QVis can determine the dynamic viscosity of both resting and flowing liquids. Being fully independent of the flow conditions, your liquid can even have turbulences.
And here is how QVis works: Once immersed into the test liquid the oscillating behavior of the quartz changes. Each influence on the oscillation has specific characteristics and will be analyzed thoroughly by the flucon device to determine the viscosity. This patented, tried and trusted measuring method makes our QVis a unique instrument that opens up many new possibilities for the determination and for the control of viscosity.
Key features
- Available for both inline/process and laboratory applications
- Measurement of the dynamic viscosity and temperature
- Simultaneous display of the kinematic viscosity
- Determination of the viscosity independent of the direction of flow
- High shear-rates without adverse effects on the test fluid
- Large measuring range (1 to 10.000 mPas)
- Only small samples required for measurements (approx. 35 ml)
- Short set-up and measuring times
- Easy to handle and to clean
- Robust quartz sensor without any moving parts
- Standard digital interface (RS-232) for optional connection to your WINDOWS PC
Fields of application
The QVis viscometer can be run either in stand-alone mode or - with the included powerful software - on any WINDOWS computer via RS-232/USB. By means of its analog output (process version) it can also be used to surveil certain viscosity control elements, e.g. for diluent admixing.
Technical data
| Power supply | 110-240 V, 50/60 Hz |
| Energy consumption | < 10 W |
| Viscosity range | 1 to 10.000 mPas |
| Repeatability | Deviation ± 1% for η > 10 mPas
Deviation ± 0,1 mPas for η ≤ 10 mPas |
| Calibration | reference oil calibration |
| Response time | approx. 15 s |
| Frequency | approx. 56 kHz |
| Shear rate | approx. 3,5 *105 s-1 |
| Sensor consumption | < 100 mW |
| Temperature range sensor | -20°C to 120°C (optionally up to 300°C) |
| Pressure range sensor | 25 bar |
| Temperature measurement | PT100 (4-wire technology), +/- 0,1°C |
| Data communication (computer) | RS-232 interface |
| Dimensions electronic unit (LxWxH) | 330 x 290 x 145 mm |
| Dimensions sensor | immersion depth 50mm,
custom-made sizes available upon request |
For the application in explosive hazardous areas, please refer to the explosive-proof process viscosimeter.
New possiblities. With Qvis.
The QVis 01/o is more than just a sensor for the determination of viscosity. It's an intelligent measuring system that facilitates process management and optimizes customized quality control.
