Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

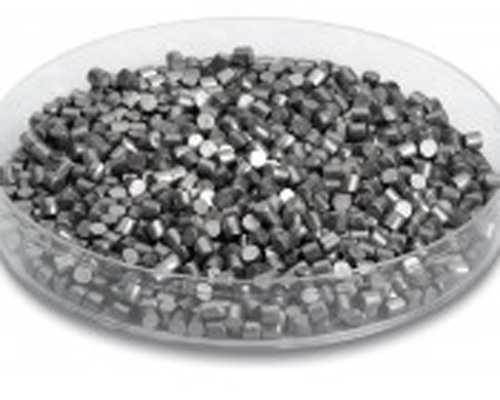

Tantalum Evaporation Materials
Description
Tantalum (Ta) is a dark blue-gray metal that is very heavy, ductile and hard and has high corrosion resistance. Tantalum is especially resistant to chemicals at temperatures below 150 °C and can only be dissolved with hydrofluouric acid.
High purity evaporation materials play a huge role in deposition processes to ensure high quality deposited film. Stanford Advanced Materials (SAM) specializes in producing up to 99.95% purity tantalum evaporation materials using quality assurance processes to guarantee product reliability.
Tantalum Evaporation Materials Specification
|
Material |
Tantalum |
|
Atomic Weight |
180.94788 |
|
Color/Appearance |
Gray Blue, Metallic |
|
Thermal Conductivity |
57 W/m.K |
|
Melting Point (°C) |
3,017 |
|
Coefficient of Thermal Expansion |
6.3 x 10-6/K |
|
Theoretical Density (g/cc) |
16.6 |
|
Z Ratio |
0.262 |
|
Temp. (°C) for Given Vap. Press. (Torr) |
10^-8: 1,960 10^-6: 2,240 10^-4: 2,590 |
Tantalum Evaporation Materials Application
Applications
1. Manufacture of electronic equipment: Tantalum Evaporation Materials play a vital role in the manufacture of electronic equipment. Due to its excellent corrosion resistance and high melting point, it is often used in the manufacture of capacitors, resistors, and other electronic components. Especially in the internal circuits of smartphones, computers, and other portable electronic devices, Tantalum Evaporation Materials provide excellent performance and stability.
2. Vacuum Coating Technology: Tantalum Evaporation Materials are widely used in vacuum coating processes to form uniform, dense films on substrates. These films can improve the conductivity, corrosion resistance, or optical properties of the substrate for a variety of application scenarios, such as solar cells, displays, sensors, and more.
3. Optics: Tantalum Evaporation Materials are also used in the manufacture of optical thin films. These films have specific optical properties that can be used to adjust the transmission, reflection, or absorption of light, and are thus used in the manufacture of optical lenses, filters, mirrors, and other optical devices.
4. High-temperature superconducting materials: With the development of clean energy technologies, tantalum evaporation materials also play a key role in the fabrication of high-temperature superconducting materials. These superconducting materials are capable of transmitting electrical energy under zero resistance conditions, thereby improving energy transmission efficiency and reducing energy losses.
5. Scientific research and experiments: In the field of scientific research, Tantalum Evaporation Materials are ideal for researching new materials and devices due to their unique properties. Scientists can promote scientific and technological progress in related fields by studying the evaporation process, film formation mechanism, and performance optimization of tantalum-evaporated materials.
Tantalum Evaporation Materials Packaging
Our Tantalum evaporation materials are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
