Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

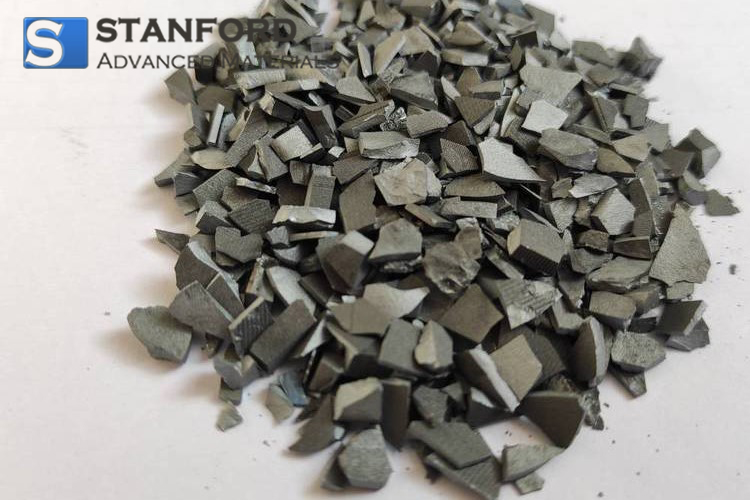

Molybdenum Silicide Evaporation Materials
Description
Stanford Advanced Materials (SAM) specializes in producing high purity Molybdenum Silicide Evaporation Materials with high quality for use in semiconductor, chemical vapor deposition (CVD) and physical vapor deposition (PVD) display and optical applications. The unique synergy between our engineering, manufacturing and analytical teams has allowed us to produce industry-leading evaporation materials.
Molybdenum Silicide Evaporation Materials Specification
|
Compound Formula |
MoSi2 |
|
Appearance |
Gray metallic solid |
|
Melting Point |
1900-2050 °C |
|
Density |
6.23-6.31 g/cm3 |
|
Thermal Conductivity |
66.2 W/m-K (23 °C) |
Molybdenum Silicide Evaporation Materials Application
Molybdenum Silicide (MoSi2) Evaporation Materials have important applications in the semiconductor industry. They are commonly used to prepare metal silicide films, which play a key role in CMOS (Complementary Metal-Oxide-Semiconductor) devices and other integrated circuits. MoSi2 films have good electrical conductivity and thermal stability, as well as excellent chemical stability, which makes them ideal for metal contacts, resistive layers and conductors. ideal for metal links, resistive layers, and conductors. In addition, MoSi2 films are used in solar cells, thermoelectric elements, and other high-temperature applications, where they are favored for their excellent oxidation and heat resistance.
Molybdenum Silicide Evaporation Materials Packaging
Our Molybdenum Silicide Evaporation Materials are carefully handled to prevent damage during storage and transportation and to preserve the quality of our products in their original condition.
