Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

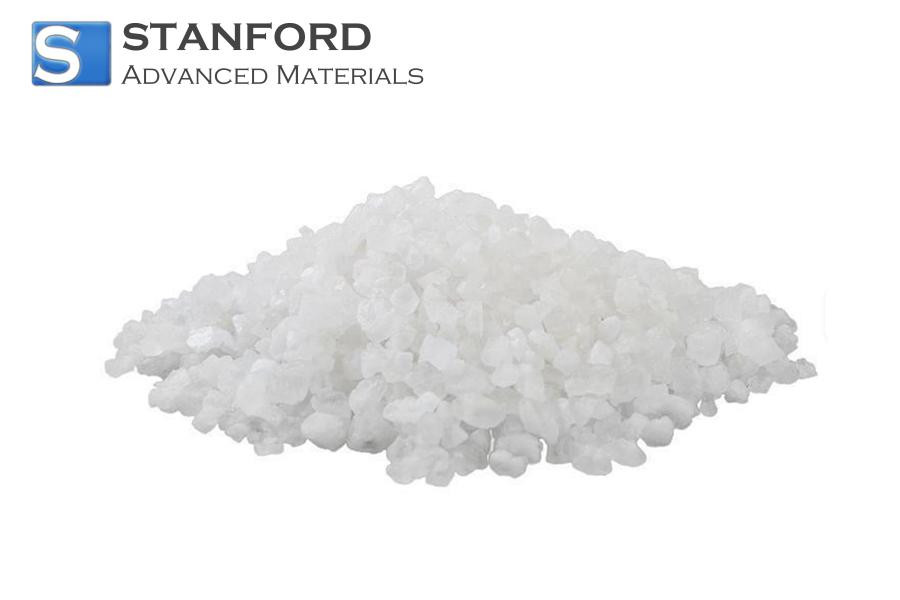

Magnesium Fluoride Evaporation Materials
Description
Discover the remarkable characteristics of Magnesium Fluoride Evaporation Materials and explore their diverse applications across various industries. This page presents an insight into the key features, applications, and advantages of integrating Magnesium Fluoride into thin film deposition processes.
Magnesium Fluoride Evaporation Materials Specification
|
Specification |
Details |
|---|---|
|
Material Type |
Magnesium Fluoride |
|
Symbol |
MgF2 |
|
Appearance/Color |
White tetragonal crystals |
|
Melting Point |
1,263 °C (2,305 °F; 1,536 K) |
|
Density |
3.148 g/cm3 |
|
Purity |
99.9% |
|
Shape |
Powder/ Granule/ Custom-made |
Magnesium Fluoride Evaporation Materials Key Characteristics
-
Chemical Composition: Magnesium Fluoride (MgF2) comprises magnesium (Mg) and fluorine (F), forming distinct white tetragonal crystals.
-
Elevated Melting Point: MgF2 boasts a high melting point of 1,263 °C (2,305 °F; 1,536 K), rendering it capable of enduring the elevated temperatures necessary for thermal evaporation without premature vaporization.
-
Density: With a density of 3.148 g/cm3, Magnesium Fluoride exhibits substantial mass, contributing to its stability during the thin film deposition process.
Magnesium Fluoride Evaporation Materials Applications
1. Optical Coatings: Magnesium Fluoride thin films find applications in optical coatings for lenses, mirrors, and a variety of optical components. Its refractive properties make it an asset for manipulating light transmission and reflection.
2. Ultraviolet (UV) Optics: Due to its transparency in the ultraviolet spectrum, Magnesium Fluoride is used in UV optics, including lenses for applications such as lithography and spectroscopy.
3. Anti-Reflective Coatings: Magnesium Fluoride is a popular choice for anti-reflective coatings, helping to minimize reflection losses and enhance optical performance.
4. Infrared (IR) Optics: Its transparency extends into the infrared region, making it valuable for IR optics, thermal imaging systems, and remote sensing applications.
Magnesium Fluoride Evaporation Materials Benefits
-
Optical Excellence: Magnesium Fluoride's optical properties, coupled with its capability to manage light transmission and reflection, contribute to enhanced optical performance in coatings and devices.
-
UV and IR Transparency: Its transparency across both ultraviolet and infrared spectra enables applications in various optical systems across different wavelength ranges.
-
Anti-Reflective Properties: As an anti-reflective coating material, Magnesium Fluoride aids in improving optical efficiency by minimizing unwanted reflections.
Unleash the potential of Magnesium Fluoride Evaporation Materials and harness their exceptional properties for pioneering applications across a spectrum of industries.
Magnesium Fluoride Evaporation Materials Packing
Our Magnesium Fluoride (MgF2) Evaporation Materials are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage caused during storage or transportation.
