Different Types of Evaporation Materials
(주)연진에스텍은 Granule, Beads & Sphere, Lump, Rod, Powder, Single Crystal 등 대부분의 Evaporation Process에 부합하는 다양한 형태의 증발 증착물질을 제공합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

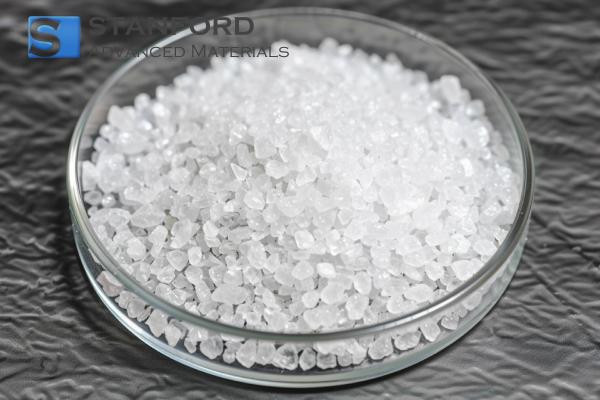

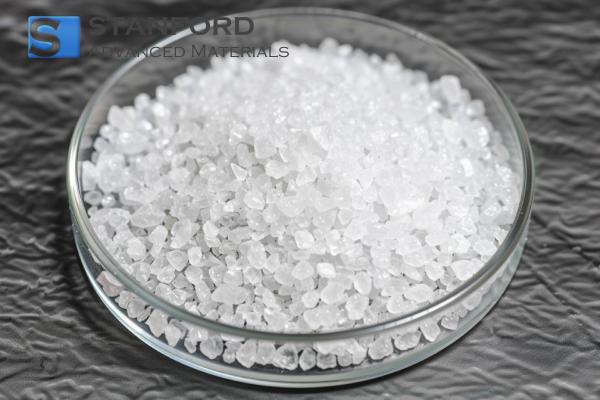

Cadmium Fluoride Evaporation Materials
Description
Uncover the exceptional qualities of Cadmium Fluoride Evaporation Materials and explore their versatile applications across diverse industries. This page provides insights into the key characteristics and applications of integrating Cadmium Fluoride into thin film deposition processes.
Cadmium Fluoride Evaporation Materials Specification
|
Specification |
Details |
|---|---|
|
Material Type |
Cadmium Fluoride |
|
Symbol |
CdF2 |
|
Appearance/Color |
White, crystalline solid |
|
Melting Point |
1,110 °C (2,030 °F; 1,380 K) |
|
Density |
6.33 g/cm3, solid |
|
Purity |
99.9% ~ 99.99% |
|
Shape |
Powder/ Granule/ Custom-made |
Cadmium Fluoride Evaporation Materials Key Characteristics
-
Chemical Composition: Cadmium Fluoride (CdF2) is composed of cadmium (Cd) and fluorine (F), forming a distinct white, crystalline solid.
-
Moderate Melting Point: CdF2 has a moderate melting point of 1,110 °C (2,030 °F; 1,380 K), making it suitable for various thermal evaporation processes.
-
Density: With a density of 6.33 g/cm3 in its solid state, Cadmium Fluoride possesses substantial mass, contributing to its stability during thin film deposition.
Cadmium Fluoride Evaporation Materials Applications
1. Optical Coatings: Cadmium Fluoride thin films are used in optical coatings for lenses, mirrors, and various optical components. Its refractive properties contribute to managing light transmission and reflection.
2. Scintillators: Cadmium Fluoride is used in scintillator applications for detecting ionizing radiation, making it valuable in medical imaging and security systems.
3. Phosphors: Its luminescent properties make Cadmium Fluoride valuable in the creation of phosphors used in displays, lighting, and imaging devices.
Leverage the potential of Cadmium Fluoride Evaporation Materials and harness their exceptional properties for innovative applications across industries.
Packing
Our Cadmium Fluoride (CdF2) Evaporation Materials are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage caused during storage or transportation.
