Chromium Fluoride Evaporation Materials
Description
Explore the exceptional attributes of Chromium Fluoride Evaporation Materials and discover their versatile applications across various industries. This page provides insights into the key characteristics and applications of integrating Chromium Fluoride into thin film deposition processes.
Chromium Fluoride Evaporation Materials Specification
|
Specification |
Details |
|---|---|
|
Material Type |
Chromium(III) Fluoride |
|
Symbol |
CrF3 |
|
Appearance/Color |
Green crystalline solid |
|
Melting Point |
1,100 °C (2,010 °F; 1,370 K) (sublimes) |
|
Density |
3.8 g/cm3 (anhydrous) / 2.2 g/cm3 (trihydrate) |
|
Purity |
99.9% |
|
Shape |
Powder/ Granule/ Custom-made |
Chromium Fluoride Evaporation Materials Key Characteristics
-

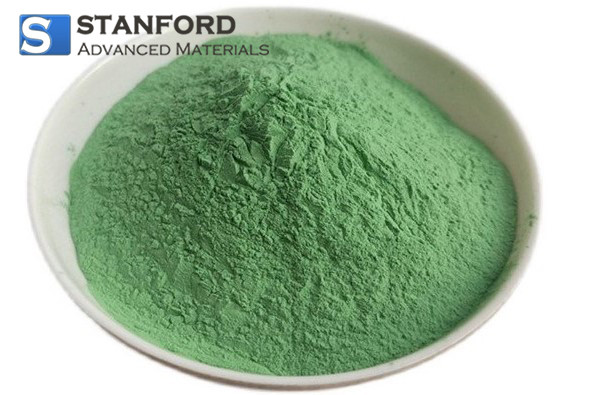

Chemical Composition: Chromium Fluoride (CrF3) is composed of chromium (Cr) and fluorine (F), forming a distinct green crystalline solid.
-
Sublimation Melting Point: CrF3 sublimes at 1,100 °C (2,010 °F; 1,370 K), transitioning directly from solid to vapor during thermal evaporation.
-
Density: The density of Chromium Fluoride varies depending on hydration, with 3.8 g/cm3 for the anhydrous form and 2.2 g/cm3 for the trihydrate form.
Chromium Fluoride Evaporation Materials Applications
1. Optical Coatings: Chromium Fluoride thin films find applications in optical coatings for lenses, mirrors, and various optical components. Its properties contribute to managing light transmission and reflection.
2. Wear-Resistant Coatings: Due to its hardness and durability, Chromium Fluoride is employed as a wear-resistant coating in various industrial applications.
3. Electroplating: Chromium Fluoride is used in electroplating processes to enhance corrosion resistance and improve the appearance of metal surfaces.
Harness the potential of Chromium Fluoride Evaporation Materials and leverage their exceptional properties for innovative applications across industries.
Chromium Fluoride Evaporation Materials Packing
Our Chromium Fluoride (CrF3) Evaporation Materials are clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage caused during storage or transportation.
