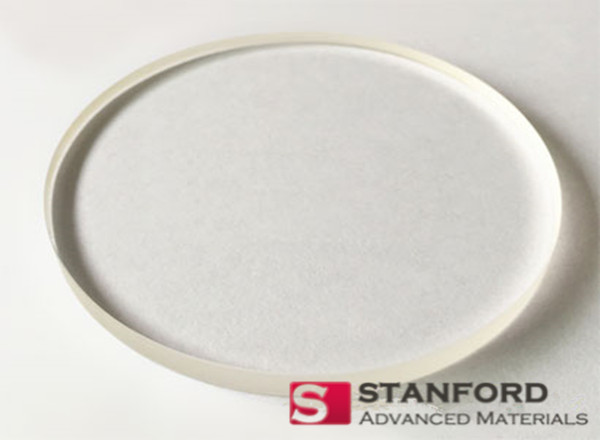

Strontium Oxide Sputtering Target, SrO
Strontium Oxide Sputtering
Target Description
The strontium oxide sputtering target is a colorless sputtering target composed of high purity strontium oxide. Strontium oxide or
strontia, SrO, is formed when strontium reacts with oxygen. It is a colorless cubic crystal. Burning strontium in air results in a mixture of strontium oxide and strontium nitride. It also forms from the decomposition of strontium carbonate SrCO3. It is a strongly basic oxide.
Strontium Oxide Sputtering Target Specification
|
Material Type |
Strontium Oxide |
|
Symbol |
SrO |
|
Color/Appearance |
Colorless Cubic Crystals |
|
Melting Point |
2,531° C (4,588° F) |
|
Boiling Point |
3200 °C (5792 °F) |
|
Density |
4.7 g/cm3 |
|
Type of Bond |
Indium, Elastomer |
|
Available Sizes |
Dia.: 2.0″, 3.0″, 4.0″, 5.0″, 6.0″ |
We also offer other customized shapes and sizes of the sputtering targets, please send us an inquiry for more information.
Strontium Oxide Sputtering Target Bonding Service
Indium Bonding and Elastomeric Target Bonding Service are available for strontium oxide sputtering target. Stanford Advanced Materials is devoted to machining standard backing plates and working together with the Taiwan Bonding Company for providing bonding services.
Strontium Sputtering Target Application
The strontium oxide sputtering materials are used for CD-ROM, decoration, semiconductor, display, LED and photovoltaic devices, functional coating as nicely as other optical information storage space industry, glass coating industry like car glass and architectural glass, optical communication, etc.
Strontium oxide can be used in glass, optics and ceramic industries, such as the manufacture of television picture tube glass. It is also an active ingredient in paint dryers. It can also be used to prepare pure strontium by heating with aluminum under vacuum.
Strontium Sputtering Target Packaging
Our strontium oxide sputter coater target is carefully packaged in the plastic vacuum bag to prevent damage during storage and transportation and to preserve the quality of our products in their original condition. Also, the COA of the raw material would be packaged with the product.
