Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

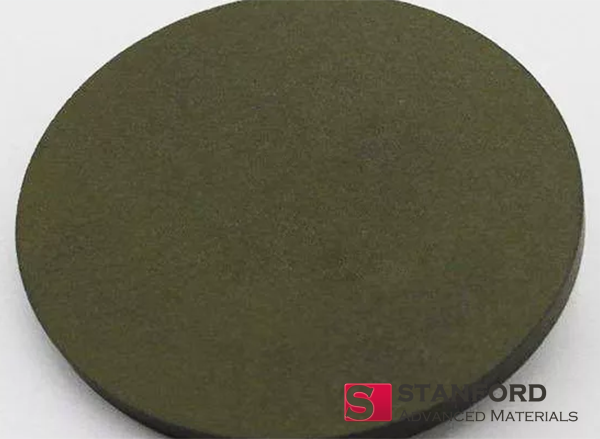

Yttrium Iron Garnet PLD Target, Y3Fe5O12, YIG
Yttrium Iron Garnet PLD
Target Description
Yttrium Iron Garnet PLD Target is a specialized material used in the sputter deposition process. Sputter deposition is a widely used technique in the production of thin films for various applications in electronics, magnetics, and optics.
YIG is known for its unique magnetic and optical properties, making it valuable in various applications. The sputter deposition process involves bombarding the target material (Yttrium Iron Garnet Sputtering Target) with high-energy ions in a vacuum chamber. This causes atoms or particles from the target material to be ejected, and these ejected particles then deposit onto a substrate, forming a thin film.
Yttrium Iron Garnet PLD Target Specifications
|
Compound Formula |
Y3Fe5O12 |
|
Molecular Weight |
737.94 |
|
Appearance |
Green target |
|
Melting Point |
N/A |
|
Density (g/cm3) |
5.11 |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″
Thick: 0.125″, 0.250″ |
Yttrium Iron Garnet PLD Target Handling Notes
- Indium bonding is recommended for Yttrium Iron Garnet PLD Target, due to some of its characteristics not amenable to sputtering like brittleness, low thermal conductivity, etc.
- This material has a low thermal conductivity, and is susceptible to thermal shock.
Yttrium Iron Garnet PLD Target Application
Yttrium Iron Garnet PLD Target is widely used in various applications in electronics, magnetics, and optics.
Yttrium Iron Garnet PLD Target Packaging
Our Yttrium Iron Garnet PLD Target is carefully handled during storage and transportation to preserve the quality of our products in their original condition.
