Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

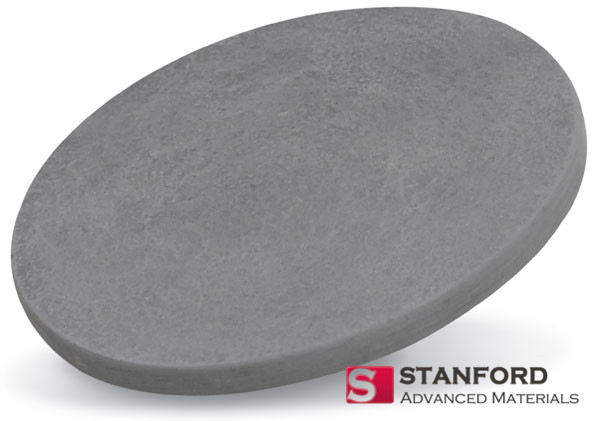

Cadmium Stannate Sputtering Targets, Cd2SnO4
Cadmium Stannate Sputtering
Targets Description
Cadmium Stannate Sputtering Target is a specialized material used in the sputter deposition process to create thin films for various applications in electronics, optics, and other industries. The sputtering process involves bombarding a target material with high-energy ions, causing atoms or molecules to be ejected from the target surface. These ejected particles then deposit onto a substrate, forming a thin film.
Cadmium Stannate (Cd2SnO4) is a compound composed of cadmium (Cd), tin (Sn), and oxygen (O). It is known for its unique electrical and optical properties, making it suitable for applications in transparent conducting films.
Cadmium Stannate Sputtering Targets Specifications
|
Compound Formula |
Cd2SnO4 |
|
Molecular Weight |
407.49 |
|
Appearance |
white solid |
|
Melting Point |
N/A |
|
Density |
N/A |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″
Thick: 0.125″, 0.250″ |
Cadmium Stannate Sputtering Targets Application
Cadmium Stannate Sputtering Target is suitable for applications in transparent conducting films. The resulting thin film from a Cadmium Stannate Sputtering Target is transparent and electrically conductive, making it useful in applications such as transparent electrodes for displays, solar cells, and other electronic devices.
Cadmium Stannate Sputtering Targets Packaging
Our Cadmium Stannate Sputtering Targets are carefully handled during storage and transportation to preserve the quality of our products in their original condition.
