Different Shapes of Sputtering Targets
(주)연진에스텍은 Planar (flat) Target과 Rotary (cylindrical) Target, Circular Target 및 Ring Target 등 대부분의 증착 공정에 부합하는 다양한 형태의 스퍼터링 타겟을 제공하며, 타겟 크기의 커스터마이즈가 가능합니다.
- High Purity & Performance 일관된 증착 품질과 오염을 줄이도록 가공합니다.
- Material Variety 다양한 응용 분야의 요구 사항에 맞게 순수 금속, 합금, 세라믹 및 화합물로 제공됩니다.
- Custom Manufacturing 특정 시스템의 필요요구 사항에 맞게 크기와 형태, 조성을 맞춤화했습니다.
- Precision Design 반복 가능하고 균일한 박막 결과를 위해 엄격한 공차로 제조되었습니다.
- Flexible Supply Chain 최고의 제조업체와 강력한 파트너십을 통해 일관된 품질과 on-time 납품을 보장합니다.

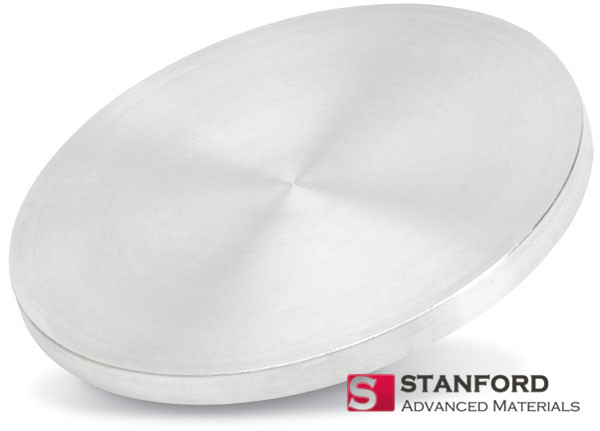

Niobium Oxide Sputtering Target, Nb2O5
Niobium Oxide Sputtering Target
Description
Niobium oxide sputtering target from Stanford Advanced Materials is an oxide sputtering material containing Nb and O.
Niobium is a chemical element that originated from Niobe, daughter of king Tantalus from Greek mythology. It was first mentioned in 1801 and observed by C. Hatchett. The isolation was later accomplished and announced by W. Blomstrand. “Nb” is the canonical chemical symbol of niobium. Its atomic number in the periodic table of elements is 41 with a location at Period 5 and Group 5, belonging to the d-block. The relative atomic mass of niobium is 92.906 38(2) Dalton, the number in the brackets indicating the uncertainty.
Oxygen is a chemical element that originated from the Greek ‘oxy’ and ‘genes’ meaning acid-forming. It was first mentioned in 1771 and observed by W. Scheele. The isolation was later accomplished and announced by W. Scheele. “O” is the canonical chemical symbol of oxygen. Its atomic number in the periodic table of elements is 8 with a location at Period 2 and Group 16, belonging to the p-block. The relative atomic mass of oxygen is 15.9994(3) Dalton, the number in the brackets indicating the uncertainty.
Niobium Oxide Sputtering Target Specification
|
Material Type |
Niobium (V) Oxide |
|
Symbol |
Nb2O5 |
|
Molecular Weight |
265.81 |
|
Color/Appearance |
White, Crystalline Solid, Grey-Black |
|
Melting Point (°C) |
1,485 |
|
Sputter |
RF, RF-R |
|
Type of Bond |
Indium, Elastomer |
|
Available Sizes |
Dia.: 1.0″, 2.0″, 3.0″, 4.0″, 5.0″, 6.0″ |
Niobium Oxide Sputtering Target Bonding Service
Indium Bonding and Elastomer Bonding are recommended for the Nb2O5 niobium oxide sputtering target. Stanford Advanced Materials is devoted to machining standard backing plates and working together with the Taiwan Bonding Company for providing bonding services.
Niobium Oxide Sputtering Target Packaging
Our niobium oxide sputtering target is clearly tagged and labeled externally to ensure efficient identification and quality control. Great care is taken to avoid any damage which might be caused during storage or transportation
