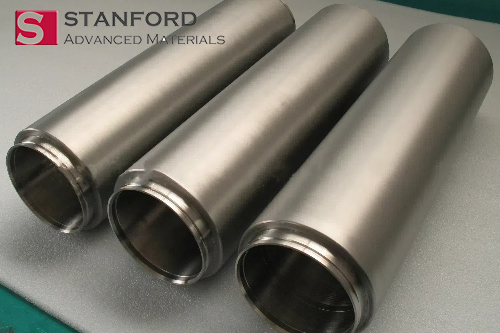

Overview of Molybdenum Sodium Rotary Target

(MoNa Rotary Target)

The MoNa Rotary Target is a dual-element sputtering solution that integrates the high melting point, mechanical strength, and chemical stability of molybdenum with the lightweight and highly mobile ionic characteristics of sodium. This target features a refined, uniform microstructure achieved through advanced alloying and sintering techniques, ensuring stable sputtering performance and consistent film deposition. Molybdenum enhances the structural integrity and oxidation resistance at elevated temperatures, while sodium improves reactivity and aids in the incorporation of alkali elements into the films. This combination results in a material with customized electrical and thermal properties, moderate density, and dependable performance in vacuum conditions. The MoNa Rotary Target is compatible with both DC and RF sputtering systems and exhibits good thermal expansion compatibility with a range of substrate materials, making it versatile for complex material systems.

Specifications of Molybdenum Sodium Rotary Target (MoNa Rotary Target)

Chemical Composition: Mo, Na
Purity: 99.95%
Shape: Tube

Please note that the specifications provided are based on theoretical data. For customized specifications and detailed inquiries, please contact us directly.

Custom Dimensions

• Diameter: Customizable to meet specific requirements
• Length: Adjustable based on application needs

Applications of Molybdenum Sodium Rotary Target (MoNa Rotary Target)

• Solid-State Batteries: Utilized in the deposition of thin solid electrolytes or sodium-based battery components, leveraging sodium’s ionic conductivity and molybdenum’s stability.

• Sodium-Ion Energy Storage: Ideal for developing electrodes or interlayers in sodium-ion batteries, supporting research into alternatives to lithium-ion technologies.

• Functional Thin Films: Used in the fabrication of alkali-metal-doped films with tailored electrical and chemical properties for electronics or sensor applications.

• Photovoltaics & Optoelectronics: Facilitates the creation of advanced coatings in solar cell research and development, especially where alkali elements modify grain boundaries or electrical properties.

• Advanced Coating Technologies: Applied in surface engineering where the combination of oxidation resistance and ionic modification is advantageous.

Packaging Options for Molybdenum Sodium Rotary Target (MoNa Rotary Target)

Our MoNa Rotary Targets are packaged to ensure their safety during transportation. Depending on the size and dimensions, smaller targets are securely packed in polypropylene (PP) boxes, while larger ones are shipped in custom-built wooden crates. We prioritize customized packaging solutions and use appropriate cushioning materials to provide maximum protection during transit.

Packaging Options:

• Carton
• Wooden Crate
• Custom Packaging

Manufacturing Process

Testing Methods

1. Chemical Composition Analysis: Techniques such as Glow Discharge Mass Spectrometry (GDMS) or X-Ray Fluorescence (XRF) are used to verify purity and composition.
2. Mechanical Properties Testing: Evaluates tensile strength, yield strength, and elongation to assess material performance.
3. Dimensional Inspection: Measures thickness, width, and length to ensure compliance with specified tolerances.
4. Surface Quality Inspection: Identifies defects like scratches, cracks, or inclusions through visual and ultrasonic examinations.
5. Hardness Testing: Determines material hardness to confirm uniformity and mechanical reliability.

Frequently Asked Questions about Molybdenum Sodium Rotary Target (MoNa Rotary Target)

Q1: Is the target reactive due to the presence of sodium?
A1: Yes, sodium is highly reactive. Therefore, the target should be handled and stored in a dry, inert environment. The sodium is uniformly distributed and stabilized within the molybdenum matrix to ensure consistent sputtering.

Q2: What is the purity of the MoNa Rotary Target?
A2: Standard MoNa Rotary Targets are manufactured using high-purity raw materials, typically achieving an overall purity of ≥99.95%.

Q3: What sputtering systems are compatible with MoNa Rotary Targets?
A3: MoNa Rotary Targets are compatible with most magnetron sputtering systems and can be used in both DC and RF configurations, depending on your specific deposition requirements.

Performance Comparison: MoNa Rotary Target vs. Mo Target vs. Ta Target

Additional Information

Raw Materials – Molybdenum (Mo)

Physical Properties:

• Density: 10.22 g/cm³
• Melting Point: 2,623°C
• Structure: Body-Centered Cubic (BCC)
• Magnetic: Non-magnetic

Chemical Properties:

• Exhibits an exceptionally high melting point, excellent thermal and electrical conductivity, and outstanding resistance to corrosion and wear.
• Commonly used to strengthen steel alloys, endure high-temperature environments, and serve as a base material for various sputtering targets.
• Forms stable oxides and offers chemical durability even under aggressive conditions, making it ideal for applications in electronics, aerospace, energy, and thin film technologies.

Industrial Applications:

• Alloying Agent: Enhances toughness and fatigue resistance in steel and other alloys.
• Catalysts: Used in certain chemical reactions and processes.
• High-Performance Alloys: Integral in aerospace and automotive components requiring high strength and durability.

Raw Materials – Sodium (Na)

Physical Properties:

• Density: 0.968 g/cm³
• Melting Point: 97.72°C
• Structure: Body-Centered Cubic (BCC) at room temperature
• Magnetic: Non-magnetic

Chemical Properties:

• An alkali metal known for its low atomic mass, high chemical reactivity, and excellent ionic conductivity.
• Soft, silvery-white, and highly reactive, especially in the presence of moisture or oxygen.
• Plays a critical role in energy storage technologies, such as sodium-ion batteries and solid-state electrolytes, due to its ability to move easily through solid materials as an ion.
• Its unique chemical behavior makes it valuable for modifying the electronic properties of thin films and facilitating advanced research in electrochemistry and materials science.

Industrial Applications:

• Energy Storage: Essential for sodium-ion batteries and solid-state electrolytes.
• Chemical Synthesis: Utilized in various chemical reactions and processes.
• Electronics: Employed in the modification of electronic properties in thin films and advanced materials research.
