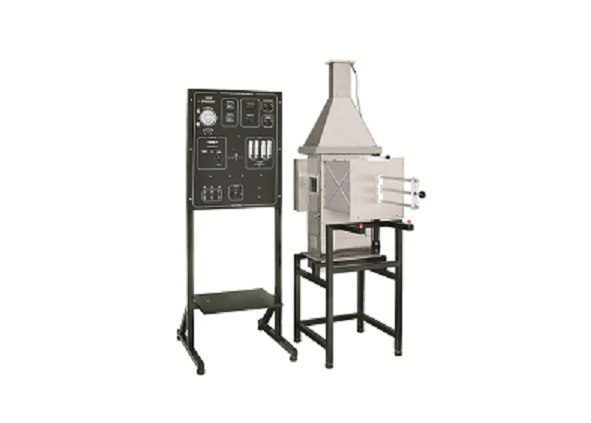

OSU RHR Apparatus

FAR Part 25 App F Part IV, BSS 7322, AITM 2.0006



FAA OSU RHR 열 방출속도 측정기 (Rate of Heat Release Apparatus)는 항공기 내장재의 열 방출 성능을 평가합니다. 본 기기는 FAA의 제조 요구 사항을 준수하는지 FAA에 의해 개별적으로 검사됩니다. FAA의 적합성 인증서(conformance certificate)가 장비에 포함됩니다.

  • FAR Part 25 Appendix F Parts:
  • Vertical Flammability Tests Part I (b) (4)
  • Horizontal Flammability Test Part I (b) (5)
  • 45º Flammability Test Part I (b) (6)
  • 60º Flammability Test Part I (b) (7)
  • Airbus: AITM 2.0002, AITM 2.0003, AITM 2.0004 and AITM2.0005.
  • Boeing: BS 7230 – F1, F2, F3, F4, F5, F6 and F7.


The test chamber is fabricated from high quality brushed stainless steel and includes the following features:
• Adjustable burner complete with specimen holders and support systems to perform all the test methods listed above.
• A digital timer which automatically controls gas flow and records timed events.
• Flame impingement time is accomplished by adjusting the up/down button for the flame application time, in seconds.
• Automatic control of flame application time.
• Enables recording of “after flame” values.
• UKCA and CE compliant



  • All stainless steel construction
  • Test Equipment with FAA inspection certificate
  • 2 Specimen Holders
  • Extensive control panel
  • Calibration rig with centre and corner transducers
  • Mass flow controller for calibration
  • Data acquisition system
  • Windows Laptop with installed software to automatically run calibration & calculate test results
  • Optional wet test meter for methane flow calibrations





OSU RHR Apparatus
FAR Part 25 App F Part IV, BSS 7322, AITM 2.0006

This FAA OSU RHR Rate of Heat Release Apparatus evaluates the heat release performance of aircraft interior materials.  These instruments are individually inspected by the FAA for compliance to the manufacturing requirements of the FAA.  A conformance certificate from the FAA is included with the equipment.




Concept Equipment Ltd. West Sussex, UK
