General Instruments

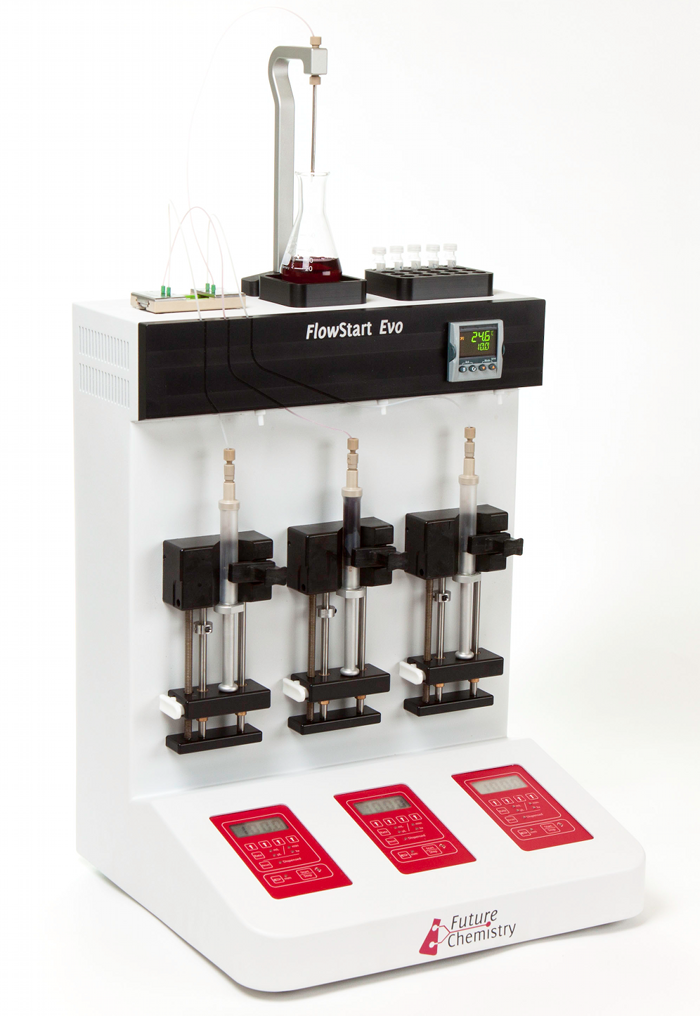

FlowStart Evo

With the FlowStart Evo you can start working with flow chemistry today!

FlowStart Evo.png

The FlowStart Evo is the most reliable, versatile and easy-to-use microreactor platform available. It can even be used for flow chemistry education in combination with our flow chemistry course.

p-1394-file_5.jpgp-1394-file_3_2.jpg p-1394-file_4_1.jpg

Benefits of the FlowStart Evo

  • Plug 'n Play
  • Stand alone, no PC required
  • Wide range of add-on modules available
  • Can be coupled to inline analysis
  • Excellent mixing at microliter scale
  • Hands-on pump control
  • Temperature control over total microreactor surface
  • Easy product collection

Specifications

Volume of syringes1 mL / 5 mL included  (up to 25 mL possible)
Max. pressure25 bar / 357 psi *
Flow range0.012 μL/min ? 2.9 mL/min
Residence times0.05 second to multi hour
Temperature range-10 to 140 or 200 °C / 32 to 284 or 392 °F *
Temperature accuracy± 0.5 °C / 0.9 °F
Compatible microreactorsFutureChemistry Microreactors (with different holder also compatible with several micronit microreactors)
Operating modeManual, stand-alone or remote controlled
Wetted parts (all replaceable)PTFE, ETFE, FEP, glass
Chemical compatibilityall common solvents and
reagents, and mineral acids *
Dimensions (w x d x h)365 x 332 x 615 mm

* Standard configuration up to 140 °C, optionally to 200 °C with the High Temperature Module

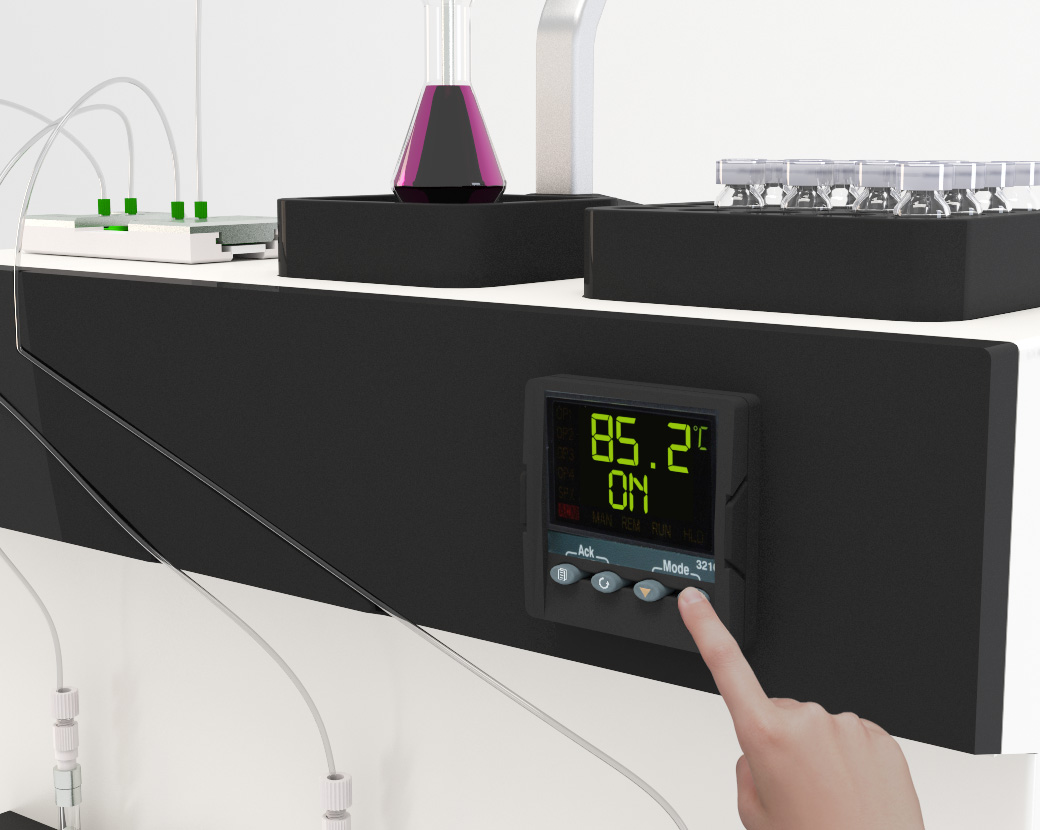

Temperature Module

Minimum temperature-10 °C (14 °F)
Maximum temprature140 °C (212 °F), with High temperature module up to 200 °C (392 °F)
ControlLocal interface (no computer required), can be controlled with PC (with optional module)
AC Power110-120 V / 220-240 V, 50-60 Hz
Temperature accuracy+/- 0.5 °C (+/- 0.9 °F)

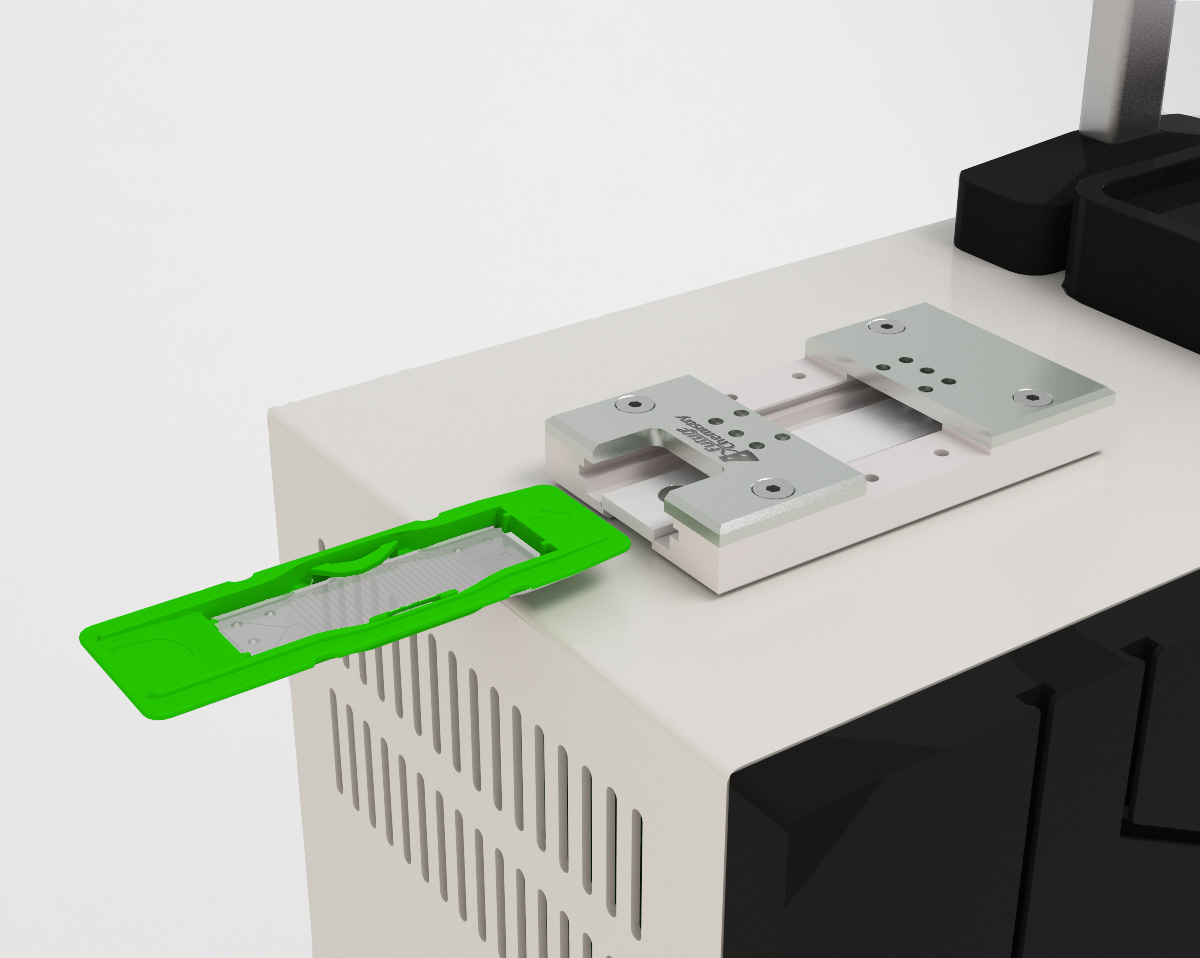

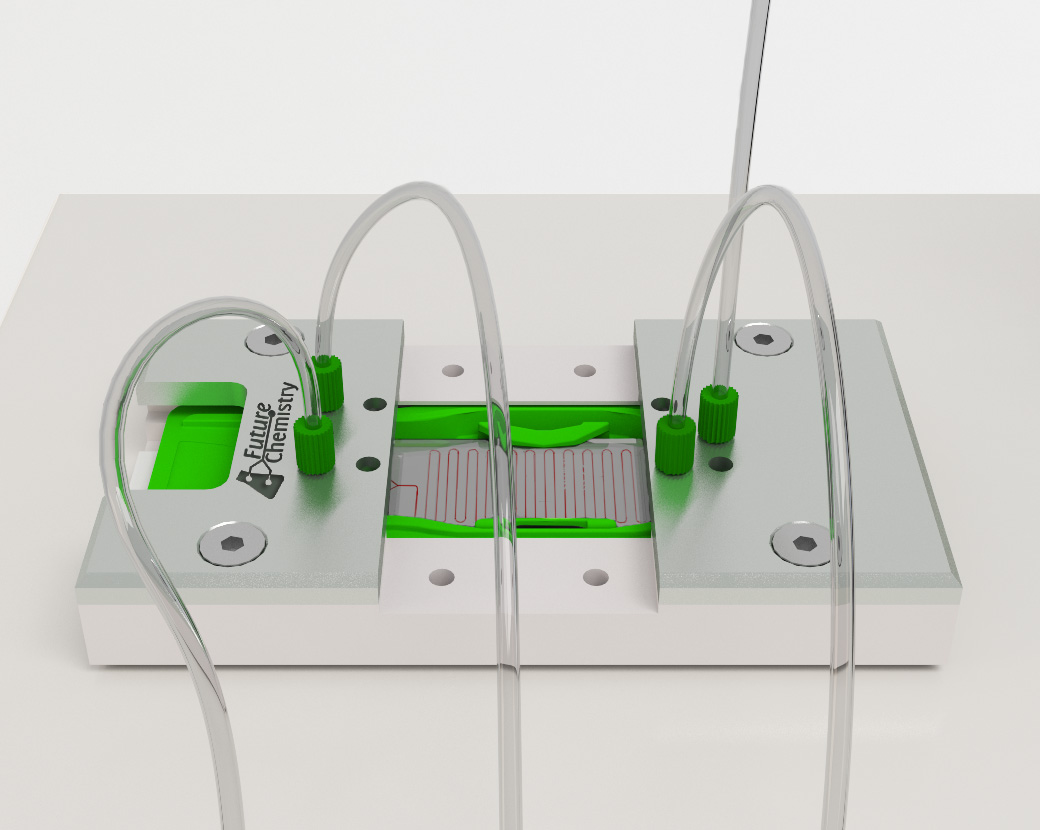

Microreactor Holder

MaterialsPEEK and stainless steel
Fluidic connectionFlat bottom ferrule
Microreactor compatibilityFutureChemistry Microreactor cartridge
Dimensions (L x W x H)

80 x 44 x 11.5 mm
