Flexural bending test fixtures

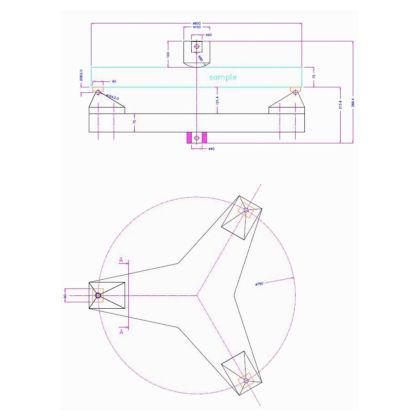

ASTM C1550 Flexural Bend Fixture | GC1550-903

PRODUCT INFORMATION

Model# GC1550-903
Force Rated to 100 kN (22,500 lb)

FEATURES & BENEFITS

  • Made per ASTM C1550
  • 3 lower supports on a ball with a 40 mm x 50 mm pad
  • Loading nose with 80 mm radius (160 mm diameter)
  • 40 mm diameter female cup adapter with a hole for a 16 mm diameter cross pin (machine adapters available)
  • Rated for 100 kN (22,500 lbf)
  • Fixture weight approximately 270 lbf







Product Literature
