Instec, Inc. USA

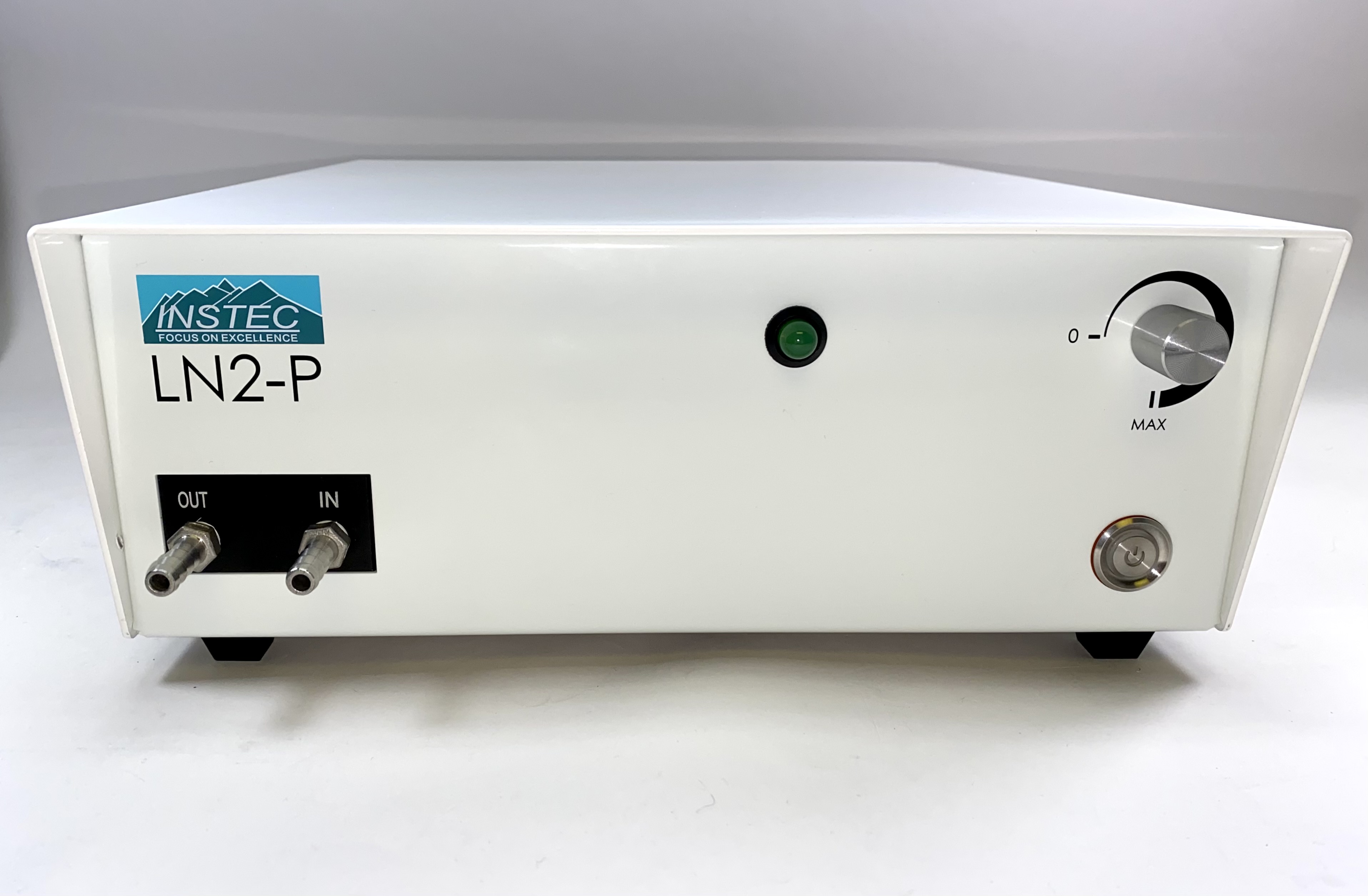

LN2 LIQUID NITROGEN COOLING SYSTEMS

유저 이미지 YEONJIN
조회수 4,310 작성 2021. 03. 16. 02:35:49

  • Enable sample cooling to as low as -190°C
  • Systems consist of a pump, a Dewar, a lid with a stoppered port, and connecting tubing
  • LN2-P2, LN2-P4, and LN2-P8 output options
  • Three Dewar sizes, 2 L, 10 L, and 30 L, with easy refillable lid options
  • Integrates with mK2000 PID controller with ±0.1% resolution



FEATURES

  • Liquid nitrogen systems provide sample cooling to as low as -190°C depending on pump power and thermal block size
  • Systems consist of a pump, a Dewar, a lid with a stoppered port for refilling during operation, and connecting tubing
  • Three liquid nitrogen pump output options available, LN2-P2, LN2-P4, and LN2-P8, which suction liquid nitrogen through the equipment and are controlled by the mK2000
  • Three Dewar sizes, 2 L, 10 L, and 30 L, with easy refillable lid options to control liquid nitrogen supply to instruments
  •  Integrates with mK2000 PID controller with ±0.1% resolution



SPECIFICATIONS



LN2-P2

LN2-P4

LN2-P8

STAGES
  • HCS302 / 302G / 402

-100°C

-190°C

-190°C
  • HCS321Gi

-60°C

-80°C

-190°C
  • HCS621G / 421V

-160°C

-190°C

-190°C
  • HCS622G / 422V

-100°C

-190°C

-190°C
  • FS1

NA

-60°C

-190°C
  • CLM77K / CLM77Ki

NA

-190°C

-190°C

CHUCKS & PLATES
  • 100mm square or round

-40°C

-60°C

-120°C
  • 150mm square or round

-20°C

-40°C

-100°C
  • 200mm square or round

NA

-30°C

-80°C
  • 300mm square or round

NA

-20°C

-60°C
  • HCC602

-120°C

-170°C

-190°C




fileAttachedList 2

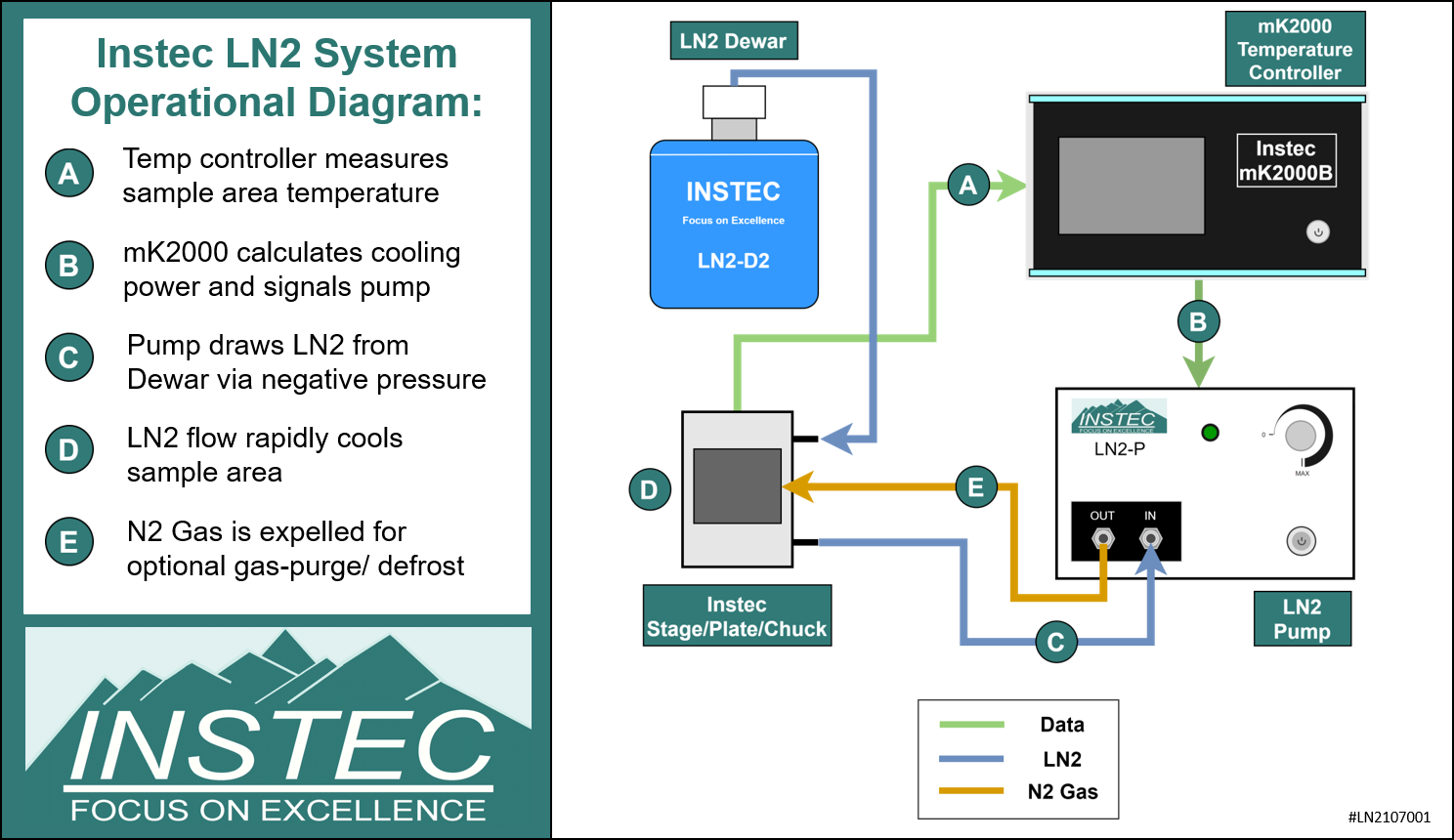

LN2 LIQUID NITROGEN COOLING SYSTEMS, -2.jpg (894.52kB) LN2 flow diagram.png (268.75kB)
