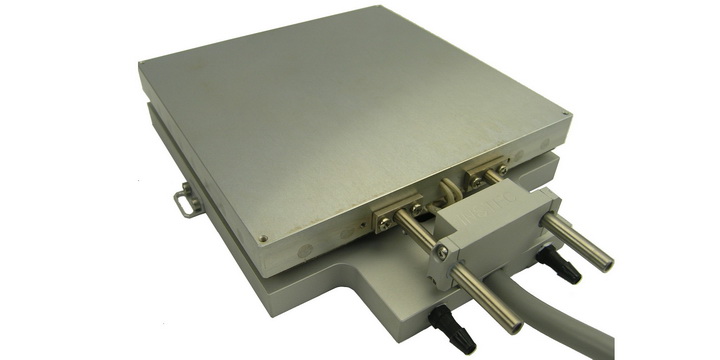

Square Hot and Cold Plates Without Cover

Thermal Properties Analyzer

Thermal Conductivity (Lambda), Ash Fusion, Thermal Screening, Microscopic Hot/Cold Stage, Wafer Chuck, Thermal Plate, Thermal Probe Station

Home > Products > 열물성분석기 (열전도도, 회융점, Tm, Hot/cold stage)

Thermal Plate

Perform experiments under programmable precision temperature control from -190°C ~ 600°C depending on model
Standard square plates from 50 mm to 300 mm, with custom sizes available
Bench mounting capability

Surface Options	Silver, clear anodized aluminum, or nickel plated copper, denpending on models
Surface Electrical Options	Grounded (standard), floating (optional)
Frame Cooling	Integrated frame cooling with optional chiller system
Mounting	Benchtop mounting capability
Temperature Control	mK2000 with programmable precision switching PID method Optional LVDC PID method to minimize electrical noise
Temperature Sensor	100 Ω Platinum RTD
Temperature Resolution	0.01°C
Temperature Stability	±0.05°C (above 25°C) and ±0.1°C (below 25°C)
Temperature Uniformity	±0.1°C per cm(above 25°C) and ±0.3°C per cm (below 25°C)
Power Supply	115 V or 230 V depending on region
Software	Windows software to record and export temperature-time data
