Laser Imaging System and Particle Size Analyzer

OxfordLasers (UK) 레이저 입자형상 분석기는 매우 다양한 분야의 입자 및 과립, 기포 크기 측정에서 부터 스프레이 패턴 및 plume geometry의 정량화를 통한 스프레이 형태 특성분석과 process optimization를 위한 welding 및 ballistics 이벤트의 고속 이미징이 가능합니다.

고속 이미징 응용 분야를 위한 레이저로부터, 실험실 및 현장 기기에 이르기까지 연구 분야의 어떤 제품을 선택하든 모든 범위에서 Oxford Lasers의 높은 품질 표준을 보장받을 수 있습니다.

SAFETY

Many of the solutions provided are
Class 1 laser safe.
This means there are no laser hazards and
they are safeㅊto use in an open lab or
facility without the need
for laser safety glasses.
STABILITY

Dedicated system specific software for both
the VisiSize and EnVision range of products
enables, repeatability of results, rapid training
for users and enhanced system stability.
FUNCTIONALITY

Whether you choose a portable plug and
play system or a lab tool, integrated solutions
enable fast installation and easy application/
transfer of the system to multiple sites.



Laser Imaging System for Particles from OxfordLasers (UK)

VISISIZE P15

VISISIZE D30

VISISIZE N60

Firefly 300W Laser

Firebird 1000W Laser

EnVision Pharma R&D

EnVision Pharma QC

VISISIZE P15

VISISIZE D30

VISISIZE N60

Firefly 300W Laser

Firebird 1000W Laser

EnVision Pharma R&D

EnVision Pharma QC

Fully portable system

Created to provide versatility for a range of experiments.

Complete system for fast moving sprays

Small and lightweight unit,

Machined aluminium case

High Power: 1kW power,

Machined aluminium case



Compliant: 21 CFR11 compliant process

IP67 Showerproof rating

Simple set up with rail or table mount options

Copes with volatile sprays in extreme environments,

Non intrusive

Splash-proof: Water resistant housing

Splash-proof: Water resistant housing

Easy to use

Easy to use: 2 click analysis

Velocity & direction measurement

Non-intrusive: Designed to prevent intrusion in field of spray or powder

Measure Direction, Velocity or both from a single system

Computer controlled

Illuminate larger working areas

Computer controlled

Full data output

Suitable for any inhaler type device

VisiSizer software

VisiSizer software

VisiSizer software

Easily integrated with cameras and systems

Multiple triggering options available

Develop multiple device types with one tool

Results storage with full audit trail

N/A (Non-laser based)

Oxford Lasers Firefly

Flash Lamp Qsw

Diode laser

Diode laser

Oxford Lasers Firefly

Oxford Lasers Firefly



Specification Summary Table of OxfordLasers' Particle Imaging Systems

Service Offered

Product Solution

Specification Offered

Options Available

Droplet Size Distribution

VisiSize

  • Size range
  • Velocity range
  • Optical Access
  • Field of View
  • Continuous or transient event
  • System Purchase
  • In house testing
  • On site testing

Spray Pattern

EnVision

  • Frequency of data capture
  • System Purchase
  • In house testing

Plume Geometry

EnVision

  • Cone angle
  • Frequency of data capture
  • System Purchase
  • In house testing

Velocity Profile

EnVision

  • Field of View
  • Maximum Velocity
  • Droplet size applied
  • Frequency of data capture
  • System Purchase
  • In house testing
  • On site testing

Visualization of Bright Events

VisiWeld

  • Frequency of data capture
  • Field of View
  • Optical access
  • Light spectrum from event
  • System Purchase
  • In house testing







Laser Particle Size Analyzer

Principle

입자 및 분산 매체의 광학적 특성 중 굴절율 (refractive index)을 충분히 고려한 full-scale의 Mie scattering theory 에 의거해 모든 각도에서 입자의 크기에 따른 산란광 강도 변화로 부터 입자 크기 분포 데이터가 측정됩니다.



Technical characteristics

테스트 안정성 기반 : 안정적인 옵티컬 신호를 제공 할 수 있는 시스템만이 테스트 데이터의 안정성을 완전히 보장할 수 있습니다. He-Ne 가스 레이저를 사용해, 0.6328 미크론의 파장, 단파장, 선폭이 좁고 안정성이 좋으며 25,000 시간 이상의 서비스 수명이 시스템이 안정적인 레이저 소스 신호를 제공하는 데 매우 좋습니다.



Detectors

Photoelectric detection system. 독특한 디자인, 고감도, main detector, 다중 보조 감지기, 교차 섹터 매트릭스 배열 (cross-sector matrix arrangement)의 3 차원 불균일성, 최대 감지 각도 90도, 포괄적인 신호 감지를 완벽하게 보장합니다.


Optical path

다양한 디자인과 독특한 light path을 사용하여 푸리에 렌즈 그룹 (Fourier lens group)을 줄임으로써 측정 범위가 더 넓고 분해능이 높습니다.


Analysis Software

PADMAS 입자 크기 측정 및 분석 시스템 (Particle Diameter Measure & Analysis System)은 강력하고, 평균, 통계, 비교 및 모드 전환, 미분 분포, 누적 분포, 표준 등급, RR 분포, 사용자 정의 등 테스트 데이터 처리가 가능합니다. Column과 quantity grade distribution에 의한 custom grading 등. 0.02 ~ 2000 미크론 이내의 기본 130 grading. 1 ~ 130 범위 내에서 맞춤 분류 (classification)가 가능합니다.



Strong visibility

Testing friendly software interface. 테스트 프로세스가 명확하게 표시되고 즉각적인 refresh, 가시성이 표시되며 기기 작동 조건, 테스트 데이터의 명확한 조건의 변동, 측정 된 데이터의 신뢰성 및 신뢰성 분석을 언제든지 관찰 할 수 있습니다.

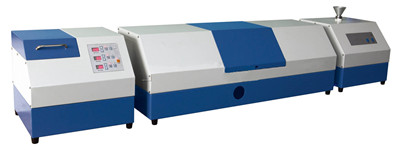

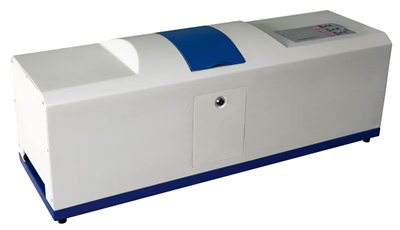

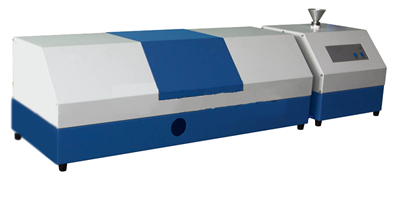

  1062  1062A 1062B 1062C








Method
Wet method
Wet method
Dry method
Dry and Wet method
Standard
ISO13320
ISO13320

ISO13320
Measuring Range
0.02~1200 μm
0.1–600 μm
0.1–600 μm
0.1–600 μm
Accuracy Tolerance
± 1%
± 1%
± 1%
± 1%
Deviation of Repeatability
± 1%
± 1%
± 1%
± 1%
Dimension (mm)
1000 x 330 x 320
1000 x 330 x 320
Main system: 1000 × 330 × 300
Dry injection system: 350 × 330 × 300mm
Main system: 1000 × 330 × 300
Dry & Wet injection system : 350 × 330 × 300, each
Weight
38 kg
38 kg
40 kg
50 kg
