PRODUCT INFORMATION
| Model# | G50 |
|---|---|
| Force | 10 kN (2,250 lbf) |
| Length | 300 mm (11.81 in) standard - other lengths available |
| Sample Width | 55 mm (2.16 in) standard; 130 mm (5.12 in); 260 mm (10.24 in); Wider Optional |

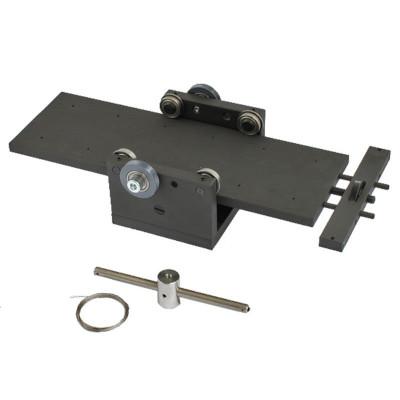

G50 family of 90 peel tables consist of a sample loading table mounted on bearings. The lateral movement of the table is directly connected to your test machine crosshead by a cable and pulley system and optional mechanical test machine adapters. The majority of the test specimen is clamped or attached to the table surface and the other end held by a standard grip mounted to the machine crosshead. As the crosshead or actuator moves, the cable transfers that movement to the peel table which moves laterally. The typical setup maintains a constant angle for the 90 degree peel, which prevents extraneous forces on the specimen. The force required to peel the specimen is then monitored by the test machine
