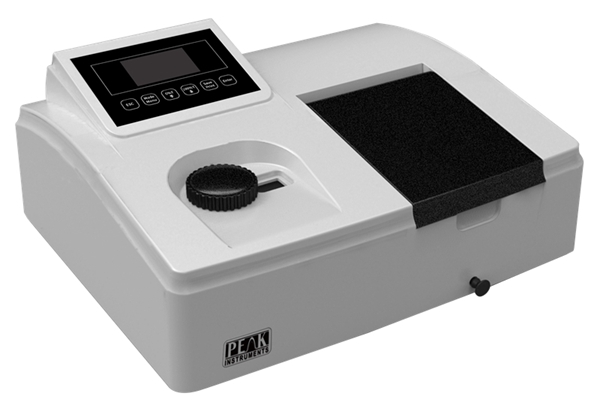

Visible Spectrophtometers
 |
 |
|
|
Model
|
C-7000V |
E-1000V |
|
Display
|
7-inch color screen with Silicone button
|
70*40mm LCD screen with keypad
|
|
Optical
|
Visible single beam
|
Visible single beam
|
|
Spectral bandwidth:
|
2nm
|
4nm
|
|
Wavelength range
|
320-1100nm
|
320-1020nm
|
|
Wavelength accuracy
|
±0.3nm
|
±2nm
|
|
Photometric range
|
0-200%T, -0.3-3A
|
-
|
|
Stray light
|
≤0.05%T @220nm, 360nm
|
-
|
|
Working mode
|
T, A, C, E
|
-
|
|
Light source
|
Tungsten Halogen/Deuterium lamps
|
Tungsten Halogen/Deuterium lamps |
| Position | 4-position 1 cm cell holder included | 4-position 1 cm cell holder included |
| Functions | ||
| Photometry | Photometry | |
| Quantitative test | Quantitative test* | |
| Kinetics measurement | - | |
| Wavelength scanning* | - | |
| Multi-wavelength test | - | |
| DNA/Protein test* |

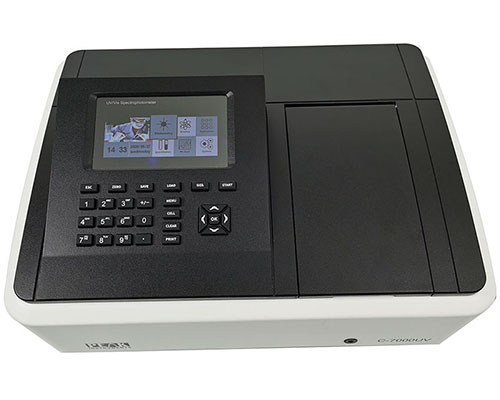

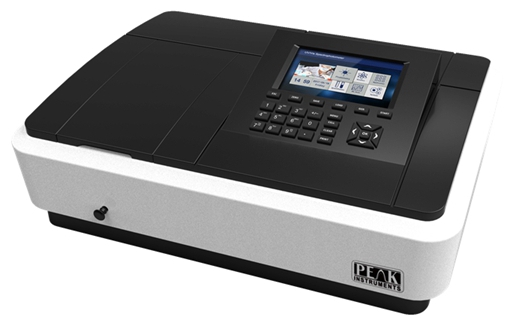

UV/Vis Spectrophotometers
 |
|
 |
 |
|
|
Model
|
C-7100 Series |
C-7200 Series |
C-7000UV |
E-1000UV |
|
Display
|
7-inch color screen with silicone button
|
7-inch color screen with silicone button
|
7-inch color screen with silicone button
|
70*40mm LCD screen with keypad
|
|
Optical
|
UV/Vis single beam
|
UV/Vis double beam
|
UV/Vis single beam
|
UV/Vis single beam
|
|
Spectral bandwidth
|
2nm / C-7100
1nm / C-7100S
0.5, 1, 2, 4nm / C-7100A
|
2nm / C-7200
1nm / C-7200S
0.5, 1, 2, 4nm / C-7200A
|
2nm
|
4nm
|
| Wavelength range | 190-1100nm | 190-1100nm | 190-1100nm | 190-1020nm |
|
Wavelength accuracy
|
±0.3nm
|
±0.3nm
|
±0.3nm
|
±2nm
|
|
Photometric range
|
0-200%T, -0.3-3A, 0-9999C
|
0-200%T, -0.3-3A, 0-9999C
|
0-200%T, -0.3-3A
|
|
|
Stray light
|
≤0.05%T@220nm, 360nm
|
≤0.05%T@220nm, 360nm
|
≤0.05%T@220nm, 360nm
|
|
|
Baseline flatness
|
±0.003A
|
±0.003A
|
|
|
|
Working mode
|
T, A, C, E
|
T, A, C, E
|
T, A, C, E
|
|
|
Light source
|
Tungsten Halogen/Deuterium lamps
|
Tungsten Halogen/Deuterium lamps
|
Tungsten Halogen/Deuterium lamps
|
Tungsten Halogen/Deuterium lamps
|
|
Functions
|
||||
| Photometry | Photometry | Photometry | Photometry | |
| Quantitative test | Quantitative test | Quantitative test | Quantitative test* | |
| Kinetics measurement | Kinetics measurement | Kinetics measurement | ||
| Wavelength scanning | Wavelength scanning | Wavelength scanning | ||
| Multi-wavelength test | Multi-wavelength test | Multi-wavelength test | ||
|
|
DNA/Protein test
|
DNA/Protein test
|
DNA/Protein test*
|
"*" can be extended with software |

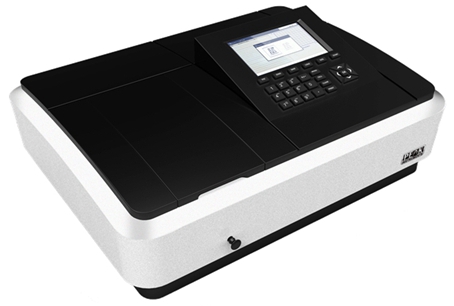

Xenon Spectrophotometers
|
|
|
 |
|
|
| Model |
X-8200 |
X-8200S |
X-8200T |
X-8200TS |
|
Display
|
7-inch color screen with silicone button
|
7-inch color screen with silicone button
|
7-inch touch screen
|
7-inch touch screen
|
|
Optical System
|
UV/Vis Double Beam
|
UV/Vis Double Beam | UV/Vis Double Beam | UV/Vis Double Beam |
|
Slit Width
|
2nm
|
1nm
|
2nm
|
1nm
|
|
Wavelength Range
|
190 - 1100nm
|
190 - 1100nm | 190 - 1100nm | 190 - 1100nm |
|
Wavelength Accuracy
|
±0.6nm
|
±0.6nm | ±0.6nm | ±0.6nm |
|
Stray Light
|
≤0.1%T@220nm,360nm
|
≤0.1%T@220nm,360nm | ≤0.1%T@220nm,360nm | ≤0.1%T@220nm,360nm |
|
Photometric Range
|
0-200%T, -0.3-3.0A, 0-9999C
|
0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C |
|
Baseline Flatness
|
±0.003A(200-1000nm)
|
±0.003A(200-1000nm) | ±0.003A(200-1000nm) | ±0.003A(200-1000nm) |
|
Working Mode
|
T, A, C, E
|
T, A, C, E | T, A, C, E | T, A, C, E |
|
Light Source
|
Xenon Lamp
|
Xenon Lamp | Xenon Lamp | Xenon Lamp |
| Functions | Xenon Spectrophotometer 시리즈는 1. Photometry 2. Quantitative test 3. Kinetics measurement 4. Wavelength scanning 5. Multi-wavelength test 6. DNA/Protein test가 모두 가능합니다. | |||

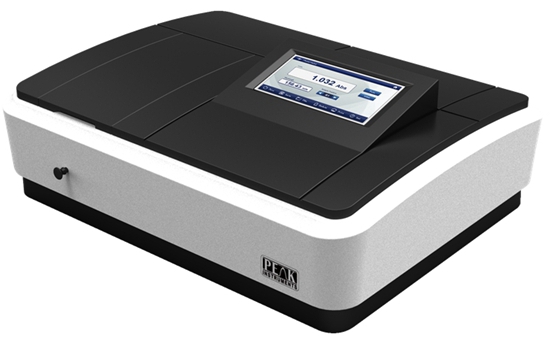

Touch Screen Spectrophotometer
|
|
 |
|
|
|
| Model |
T-9200 |
T-9200S |
T-9200A |
T-9100 |
|
Display
|
7-inch color screen with touch screen
|
7-inch color screen with touch screen
|
7-inch color screen with touch screen
|
7-inch color screen with touch screen
|
|
Optical System
|
UV/Vis Double Beam
|
UV/Vis Double Beam | UV/Vis Double Beam | UV/Vis Single Beam |
|
Slit Width
|
2nm
|
1nm
|
0.5, 1, 2, 4nm
|
2nm
|
|
Wavelength Range
|
190 - 1100nm
|
190 - 1100nm | 190 - 1100nm | 190 - 1100nm |
|
Wavelength Accuracy
|
±0.3nm
|
±0.3nm | ±0.3nm | ±0.3nm |
|
Stray Light
|
≤0.05%T@220nm,360nm
|
≤0.05%T@220nm,360nm | ≤0.05%T@220nm,360nm | ≤0.05%T@220nm,360nm |
|
Photometric Range
|
0-200%T, -0.3-3.0A, 0-9999C
|
0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C |
|
Baseline Flatness
|
±0.003A(200-1000nm)
|
±0.003A(200-1000nm) | ±0.003A(200-1000nm) | ±0.003A |
|
Working Mode
|
T, A, C, E
|
T, A, C, E | T, A, C, E | T, A, C, E |
|
Light Source
|
Tungsten Halogen/Deuterium lamps
|
Tungsten Halogen/Deuterium lamps | Tungsten Halogen/Deuterium lamps | Tungsten Halogen/Deuterium lamps |
| Functions | T-9100 / 9200 시리즈 Spectrophotometer 는 1. Photometry 2. Quantitative test 3. Kinetics measurement 4. Wavelength scanning 5. Multi-wavelength test 6. DNA/Protein test가 모두 가능합니다. | |||
