UV/Vis Spectrometer

Sample cells for UV/Visible Spectrometer

유저 이미지 관리자
조회수 1,281 작성 2020. 03. 01. 11:23:16


Cell description과 Wave length를 참고하셔서 해당하는 Part Number로 주문해주세요.

Nbr. Description / Path length Wave length Part Number
1 Standard rectangular cell with lid. 12.5 x 45 mm external for UV/Vis, Path length 5mm Far UV Silica 170~2600nm BQ105
2 Standard rectangular cell with lid. 12.5 x 45 mm external for UV/Vis, Path length 5mm Optical Glass 320-2600nm BO105
3 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 10mm Far UV Silica 170~2600nm BQ110
4 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 10mm Optical Glass 320-2600nm BO110
5 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 20mm Far UV Silica 170~2600nm BQ120
6 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 20mm Optical Glass 320-2600nm BO120
7 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 30mm Far UV Silica 170~2600nm BQ130
8 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 30mm Optical Glass 320-2600nm BO130
9 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 40mm Far UV Silica 170~2600nm BQ140
10 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 40mm Optical Glass 320-2600nm BO140
11 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 50mm Far UV Silica 170~2600nm BQ150
12 Standard rectangular cell with lid. 12.5 x 45 mm  external for UV/Vis, Path length 50mm Optical Glass 320-2600nm BO150
13 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 5mm Far UV Silica 170~2600nm BQ205
14 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 5mm Optical Glass 320-2600nm BO205
15 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ210
16 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO210
17 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 20mm Far UV Silica 170~2600nm BQ220
18 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 20mm Optical Glass 320-2600nm BO220
19 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 30mm Far UV Silica 170~2600nm BQ230
20 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 30mm Optical Glass 320-2600nm BO230
21 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 40mm Far UV Silica 170~2600nm BQ240
22 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 40mm Optical Glass 320-2600nm BO240
23 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 50mm Far UV Silica 170~2600nm BQ250
24 Standard rectangular with stopper. 12.5 x 48 mm  external for UV/Vis, path length 50mm Optical Glass 320-2600nm BO250
25 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 5mm Far UV Silica 170~2600nm BQ305
26 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 5mm Optical Glass 320-2600nm BO305
27 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ310
28 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO310
29 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 20mm Far UV Silica 170~2600nm BQ320
30 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 20mm Optical Glass 320-2600nm BO320
31 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 30mm Far UV Silica 170~2600nm BQ330
32 Microcell with lid Inner width 4mm, 12.5 x 45 mm external for UV/Vis, path length 30mm Optical Glass 320-2600nm BO330
33 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 5mm Far UV Silica 170~2600nm BQ405
34 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 5mm Optical Glass 320-2600nm BO405
35 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ410
36 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO410
37 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 20mm Far UV Silica 170~2600nm BQ420
38 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 20mm Optical Glass 320-2600nm BO420
39 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 30mm Far UV Silica 170~2600nm BQ430
40 Microcell with lid Inner width 4mm, 12.5 x 48 mm external for UV/Vis, path length 30mm Optical Glass 320-2600nm BO430
41 Microcell with lid Inner width 2mm, 12.5 x 45 mm external for UV/Vis, path length 5mm 5mm/Far UV Silica 170~2600nm BQ505
42 Microcell with lid Inner width 2mm, 12.5 x 45 mm external for UV/Vis, path length 5mm 10mm/Far UV Silica 170~2600nm BO505
43 Microcell with lid Inner width 2mm, 12.5 x 45 mm external for UV/Vis, path length 10mm 5mm/Far UV Silica 170~2600nm BQ510
44 Microcell with lid Inner width 2mm, 12.5 x 45 mm external for UV/Vis, path length 10mm 10mm/Far UV Silica 170~2600nm BO510
45 Microcell with stopper Inner width 2mm, 12.5 x 48mm external for UV/Vis, path length 5mm 5mm/Far UV Silica 170~2600nm BQ605
46 Microcell with stopper Inner width 2mm, 12.5 x 48mm external for UV/Vis, path length 5mm 10mm/Far UV Silica 170~2600nm BO605
47 Microcell with stopper Inner width 2mm, 12.5 x 48mm external for UV/Vis, path length 10mm 5mm/Far UV Silica 170~2600nm BQ610
48 Microcell with stopper Inner width 2mm, 12.5 x 48mm external for UV/Vis, path length 10mm 10mm/Far UV Silica 170~2600nm BO610
49 Cylindrical cell 22mm Dia. For UV/Vis, path length 50mm Far UV Silica 170~2600nm BQ705
50 Cylindrical cell 22mm Dia. For UV/Vis, path length 50mm Optical Glass 320-2600nm BO705
51 Cylindrical cell 22mm Dia. For UV/Vis, path length 100mm Far UV Silica 170~2600nm BQ710
52 Cylindrical cell 22mm Dia. For UV/Vis, path length 100mm Optical Glass 320-2600nm BO710
53 Cylindrical cell 22mm Dia. For UV/Vis, path length 1500mm Far UV Silica 170~2600nm BQ720
54 Cylindrical cell 22mm Dia. For UV/Vis, path length 150mm Optical Glass 320-2600nm BO720
55 Flow cell Inner width 4mm Volume 0.45ml, 12.5 x 45mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ810
56 Flow cell Inner width 4mm Volume 0.45ml, 12.5 x 45mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO810
57 Flow cell Sample hole 3mm Dia. Volume 0.08ml, 12.5 x 45mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ905
58 Flow cell Sample hole 3mm Dia. Volume 0.08ml, 12.5 x 45mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO905
59 Fluorimeter cell 12.5 x 45mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ1010
60 Fluorimeter cell 12.5 x 45mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO1010
61 Fluorimeter cell with stopper. 12.5 x 45mm external for UV/Vis, path length 10mm Far UV Silica 170~2600nm BQ1110
62 Fluorimeter cell with stopper. 12.5 x 45mm external for UV/Vis, path length 10mm Optical Glass 320-2600nm BO1110
fileAttachedList 2

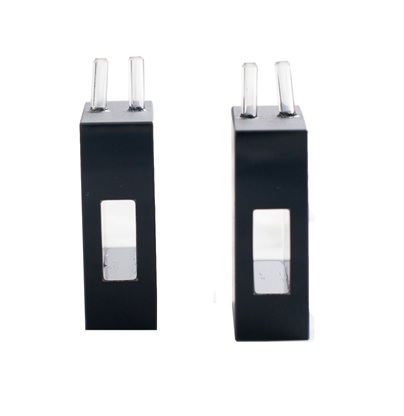

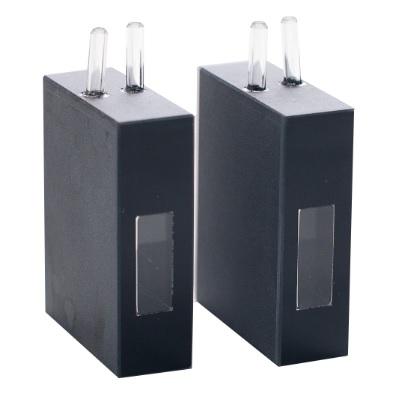

UVVis flow through cell 1.jpg (24.28kB) UVVis flow through cell 2.jpg (13.90kB)
