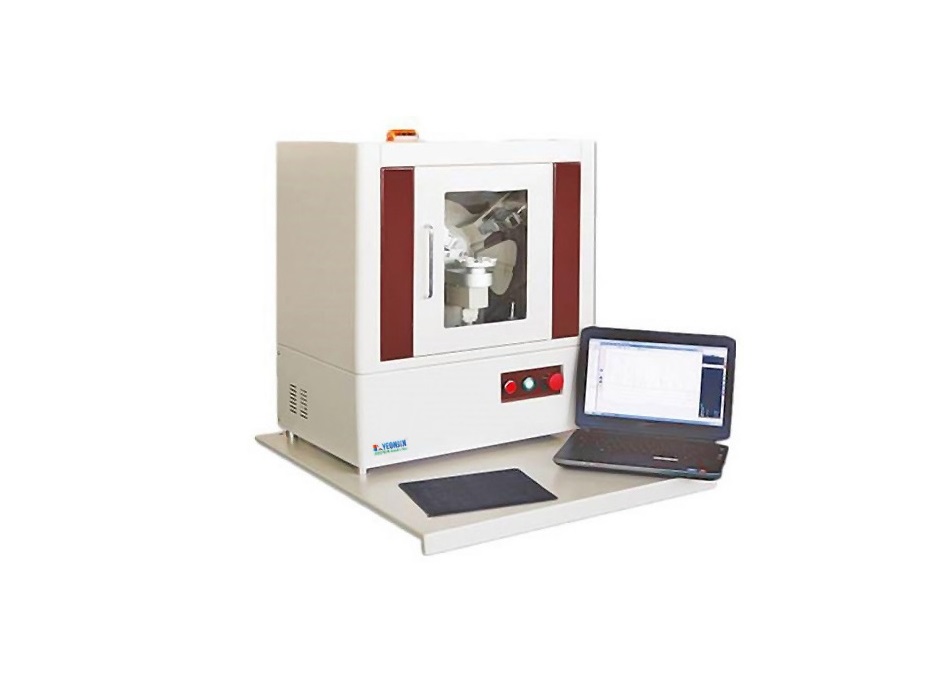

Desktop X-ray Diffractometer system

본 제품은 기능성의 소형화된 데스크탑 X-선 회절분석기로써, 전형적인 회절계의 강화된 첨단 기술을 이용해 생산 및 품질 관리를 위해 설계되었습니다. 금속 및 비금속 샘플의 정확한 정성 및 결정 구조 분석이 가능하며, 촉매와 이산화 티타늄, 시멘트, 제약 및 다양한 제조 산업에 특히 유용합니다.



Technical Parameter

  1. Rating power (tube voltage, tube current): 600W (40kV, 15mA) or 1200W (40kV,30mA), stability degree: 0.005%
  2. X-ray tube: Metal ceramic X ray tube, target material: Cu, power:2.4kW, focus size: 1×10mm; air cooling or water cooling (flow more than 2.5L/min)
  3. Goniometer: Sample level θs-θd, radius of diffraction: 150mm
  4. Scanning fashion: continuous, stepping and Omg
  5. Angle scanning range: θs / θd dlinkage /single action: -3° -150°
  6. MInimal stepping wide: 0.0001°
  7. Angle repeatable accuracy 0.0005°
  8. Angle locating speed: 1500°/min
  9. Counter: Closed proportional counters or High speed one-dimensional semiconductor counter
  10. Energy spectrum resolution: Less than 25%
  11. Maximal counting rate of linearity: ≧5×105CPS (Proportional), ≧9×107CPS (one-dimensional semiconductor)
  12. Computer: DELL business notebook
  13. Instrument control software: Windows7/10;tube current, tube voltage and optical shutter can automatically control the X-ray generator; X-ray tube aging training;step or Omg scanning can be controlled to collect data at the same time;
  14. Data processing: Automatical and manual peak-seaking, integrated intensity, peak height, weight, background subtraction, smooth, peak amplification, profile comparison, etc.
  15. Data processing software: Qualitative phase; quantitative analysis; Kα1, α2  stripping; full spectrum fitting; cyclone fitting; calculation of half peak width and grain size; unit cell determination; two types of stress calculation; diffraction line indexing; multiple drawing; 3D drawing; diffraction data calibration; background subtraction; standard-less quantitative analysis; WPF; XRD; diffraction pattern simulating.
  16. Radiation protection: Lead and glass cabinet, irradiation safety is better than 1 μSv/h
  17. Integrated stability: ≦1‰
  18. Load up at most 6 samples at a time with sample changer.
  19. Dimension:: 600 × 410 × 670 (W x D x H), mm
