ElectroDynamic

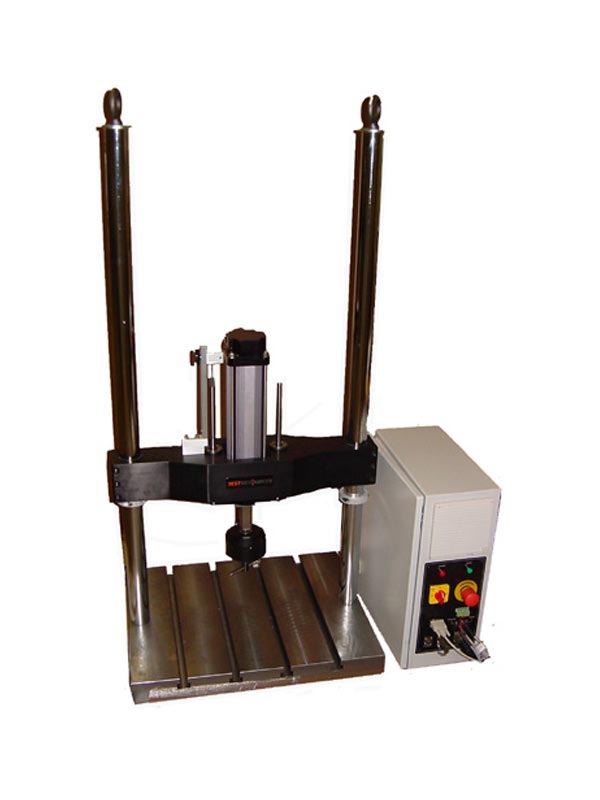

Electrodynamic [800] 810LE486 Fatigue Test System - rated 500 lb,2.2 kN (500 lb)



2.2 kN Force Capacity
2.2 kN Fatigue Rating
1 micron Resolution
150 mm Actuator Stroke
950 mm/s Actuator Speed Max
15(hz) Max Frequency



Test Motion : Axial Tension Compression
Test Type : Static, Dynamic, Fatigue



Electrodynamic test systems perform static, dynamic, and fatigue tests in load, strain, or position control. Electrodynamic test systems perform constant speed, constant load rate static tests, high speed tension or compression impact tests, and high

Servocontroller
Type PC Based L Series
Channels  Load, Position, 10V input, Strain, Strain2
Load Frame
Column Spacing 405 mm (16 in)
Load Cell
Type Fatigue Rated Load Cell
Brief Description Wide choice of cells available to cover the operating range of the machine from full system load capacity or low force tests.
Options
Stroke 6", 10", 12" and 18"
