Qualitative & Quantitative Analyzer

HPLC+GC-MS, GC-MS, LC-MS, IC, FTIR, XRD, UV/Vis Spectrometer

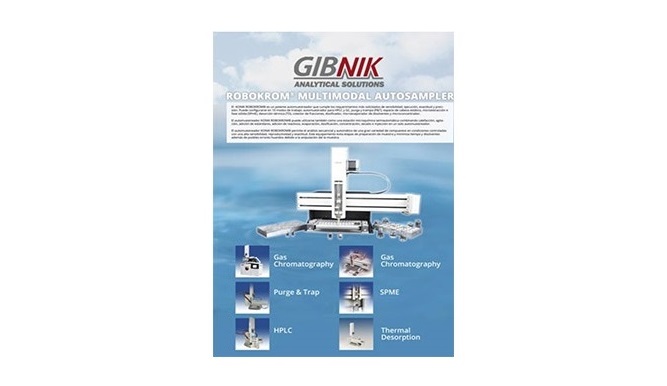

ROBOKROM® Multimodal Autosampler

ROBOKROM® Multimodal autosampler +10 Operating Modes

KONIK ROBOKROM은 강력하고 탄력적인 다양한 기능을 가진 오토 샘플러이자 오토 인젝터입니다. 본 기기는 모든 작동 모드에서 재현성, 정확성, 정밀성의 가장 까다로운 요건을 충족할 수 있습니다.




ROBOKROM GC AND HPLC AUTOSAMPLERS, AND MULTISAMPLE PREPARATION FOR GC AND HPLC
 It can be configured in 10 modes:

  1. GC Auto injector of liquid samples
  2. HPLC Auto injector of liquid samples,
  3. Purge and Trap (P & T),
  4. Static Head Space (SHS),
  5. Solid Phase micro Extraction (SPME),
  6. Thermal Desorption (TD),
  7. Fraction Collector,
  8. Dosing,
  9. Solvent Micro-Evaporator and
  10. Micro-concentrator.



 The KONIK ROBOKROM®은 높은 민감성, 재현성, 정확성을 제어하며, 다양한 샘플의 순차적이고 자동적인 샘플링과 핸들링 모드를 지원합니다. 본 기기는 복잡한 샘플 전처리 과정을 제거 또는 단순화하며 실험 시간을 줄이고 solvent 낭비를 최소화합니다. 또한 샘플 처리 중에 생길 수 있는 사용자 오차를 방지할 수 있습니다. KONIK ROBOKROM® 은 완벽하게 독립된 시스템입니다. 어떤 GC, GC-MS 와/또는 HPLC 시스템과도 결합할 수 있습니다. XY 2축과 XYZ 3축의 두 가지 버전이 비교할 수 없는 탄력성과 성능을 제공됩니다. 또한 application에 따라 독립적이고 가장 폭넓은 volume 범위를 가진 다양한 vial에 최적화된 tray를 장착하였습니다.



KONIK ROBOKROM
SUMMARY OF FEATURES


• Robokrom is offered in 2 versions: A low cost XY and a complete XYZ 3 axis movements
• The horizontal arm is symmetrical: The keyboard and microcontroller can be mounted on both sides of the same to facilitate left or right ergonomic operation.
• The vertical arm supports the chosen syringes as well as the sampling needles in specific sampling modes such as SHS, P&T, and SPmE.
• 3 interchangeable trays for 32 vials of 6, 10 or 20 ml, 105 vials of 2 ml and/or 171 vials of 1 ml.
• Optional temperature control tray (TTC): all vials can be heated or cooled through a Peltier cell from 5 ° C to 70 ° C depending on the ambient temperature.

PROGRAMMING ROBOKROM®
• Easy programming by simple microprocessor keyboard through simple interactive menus (20 character screen x 4 lines).
• Optional full control and programming through the KONIKROM® PLUS software.
• Application development mode and sequential method linking: up to 10 sampling methods can be stored, processed and linked through the ROBOKROM own microprocessor, and unlimited number of methods with KONIKROM® PLUS software.
• Other features: self-diagnosis. PID temperature control. RS-232 and RS-485 communication.



KONIK ROBOKROM
TECHNICAL SPECIFICATIONS



GC and GC-MS autoinjector

Exchangeable tray vials: tray 171 vials IML, 105 vials 2 mL vials June 32 6.106 20 mL.
Syringe Volume: 0.5, 1, 2, 5, 10, 25, 100, 500 uL.
Injection volume: Programmable from 0.1 to 500 uL depending on the type of syringes.
Plunger speed: Programmable from 1 to 5000 uL / ​​s depending on the type of syringe. Programmable motion vertical sampling rate, solvent cleaning and injection.
The place of the injector: Left or right. X and Y axes mobile adaptable to any GC. Injection mode: External, internal, double and dual analyzing the same sample (dual) or different samples (double) in two columns at once.



HPLC and HPLC-MS Autoinjector

Exchangeable tray vials: 1 mL vials 171, 105 vials 2 mL vials June 32 6, 10 6 20 mL, compatible with EPA methods.
HPLC Injector: By a six way valve with fixed loop placed at the left or right of the chassis of the basic unit.
Sample volume: Loop fixed or programmable from 0.1 to 500 uL depending on the type of syringe.



HS/SHS Static Head Space. TOGA (Transformer Oil Gas). And BOC (Blood Alcohol Content) KONIK Analyzers

Interchangeable tray vials: 32 vials 6, 10 6 20 mL with magnetic sealing plugs.
Temperature control: In five different parts: tray (up to 70 ° C), pre-desorption of-sorci6n, transfer lines and valves.
Road movement: Vertical vial pickup arm by magnet.
Inyeccidn volume: Variable, programmable injection time.
Injector HS: Médulo containing 6-way valve with heating to the left 0 to the right of the basic unit. Line trans- ference heated.
Syringe: special double needle.
EPC: electronic pneumatic control of the carrier gas and gas pressurization of the vial. Optional: sample stirring, fixed sampling loop.



P&T, Purge and Trap, Special THMs (Trihalomethanes in water) KONIK Analyzer

Vial tray: 32 vials 6, 10 6 20 mL. Vial volume: 6, 10 6 20 mL with sealed caps.
Temperature control: All programmable temperatures: transfer line, valve, trap initial temperature, desorption temperature of the trap, trap cleaning …. Injector P & T: Médulo containing valve 10 vias with heating to the left / right of the basic unit. Heated trans- ference line.
Syringe: special double needle.
Trap: heated from -190 ° C (cryogenic opcién) to 400 ° C. Mddulo criotrap with optional LN ,. Any trap available: Tenax, Silica gel, Charcoal, OV10, mixed …. EPC: electrénico pneumatic control of the carrier gas and gas pressurization of the vial.


SPME, Solid Phase micro Extraction mode. Special Flavours KONIK Analyzer.

Exchangeable tray vials: 1 mL vials 171, 105 vials 2 mL vials June 32 6 106 20.
Syringe: Needle with special adapter.
SPME fiber type available: PDMS, PDMS / DVB, PDMS / Carboxen, CW / TPR, CW / DVB …. un- of 7-100 um, with bonded phase, unbound or partially coated.
Work mode: wextraccidn GC 6 HPLC. Optional: stirring and heating of the sample (300 ° C)



TD, Thermal Desorption mode

Exchangeable tray vials: 32 vials of 6, 10, or 20 mL.
Syringe: special double needle.
Purge and trap with movement vial, Heating and cryogenic option.



Fraction Collector mode

Interchangeable collectors vial tray 171 vials 1 mL, 2 mL vials 105, June 32 vials 6, 10 6 20mL.
• Collected automatically and sequentially displayed in time.
• optional Monitorizacién the baseline (UV-VIS).
• Automatic collection of waste.



Sample Preparation Modes

ROBOKROM can be time/temperature programmed to perform controlled:

  • micro-evaporation of solvents and concentration adjustment
  • controlled volatilization and drying,
  • controlled dosage of reagents and solvents for sample derivatization
  • addition of internal standards, …
  • Intelligent volume calculation.



Automatic addition of reagents and solvents for KONIK “On Line Derivatization”

This patented option is used in conjunction with the patented HPLC+GC Coupling interface for Multidimensional HPLC+GC-MS. Please see the corresponding section.



ROBOKROM® Multimodal Autosampler
