SDTGA5000a Proximate Analyzer

Highights

  1. Simulate test environment and condition of drying oven and muffle furnace. Applicable for all type of coal analysis. Precise and reliable test results are in conformance with domestic and international standard and can be used for settlement and arbitration.
  2. Assembly line operation mode ( Patent No.: ZL200510031607.7) Sample weighing, introducing, test, taking, discarding and data processing can be finished automatically.  Fast test speed, high efficiency.
  3. Balance away from high temperature and heat radiation. No drift occur. Precise sample mass from beginning to the end of test can be ensured.
  4. With special volatile matter crucible ( Patent No.: ZL200920305233.7)and unique automatic sample delivery mechanism, operator do not need to place/take crucible cover under high temperature.
  5. Patents ensure the reliability and stability of mechanic movement system. No crucible fall off or turn over.
  6. With CAN bus interface, several analyzers can be controlled by a single PC without mutual inteference.
  7. Strong data processing, statistics and report, printing function. Balance connection is avialable by standard interface RS232.



Suitable for all types of coal

  • SDTGA5000a proximate analyzer imitates the working condition of drying oven and muffle furnace, and all types of coals can be tested accurately.

High automation

  • Sample weighing, crucible introducing, analyzing, residual weighing, crucible discarding and data management are all controlled by computer. Test is conducted with high efficiency.

Ultra-low balance drift

  • Sample weighing at room/low temperature by external and internal balances, the influence caused by balance drift has been effectively reduced.

Stable performance

  • SDTGA5000a is equipped with specially designed volatile matter crucible together with unique auto-sample loading device, and performs stably.

Multi-control

  • With CAN bus interface, several sets of SDTGA5000a can be controlled by a single computer. And each SDTGA5000a works independently.

Balance and network

  • Balance and network are connected by standard interface RS232.



Applications and Conformance with Standards

Applications

SDTGA5000a proximate analyzer can be used to;

  1. Determine the moisture, volatile matter and ash content in coal, coke and solid bio mass fuel samples and calculate the fixed carbon content and gross calorific value,
  2. Analyze the carbon content in coal ash and ash cinder samples,
  3. Determine the moisture, volatile matter and ash content in petroleum coke sample,
  4. Analyze the loss on ignition of cement.



Conformance with Standards

  •   ISO11722 Solid mineral fuels - Hard coal  Determination of moisture in the general analysis test sample by drying in nitrogen
  •   ISO1171 Solid mineral fuels - Determination of ash
  •   ISO562 Hard coal and coke - Determination of volatile matter
  •   ASTM D5142-09 Standard Test Method for Proximate Analysis of the Analysis Sample of Coal and Coke by Instrumental Procedures



Specifications

Description

SDTGA5000a

Test index

Moisture, ash and volatile matter

Continuous test in batches

No

Standards

ASTM D3173/D3174/D3175/DD7582, ISO 17246, ISO 18123/18122/18134, ISO 11722, ISO 1171

Precision

0.02% RSD (1σ, 1g sample)

Reproducibility

Ash: 0.30% (<15.00%); 0.50% (15.00~30.00%); 0.70% (>30.00%)Volatile matter: 0.50% (<20.00%); 1.00% (20.00~40.00%); 1.50% (>40.00%)

Cooling time required for batches of test

Yes

Furnace Cooling (forced air/N2)

950 to 500°C<30 min

Balance Resolution

0.0001g

Quantity of furnace

1

Sample introduction and taking

Automatic

Quantity of sample/ Analysis time

  • ISO: 16 samples / 60 min~90 min (Moisture),16 samples / 45 min (Quick Ash), 150 min (Slow ash),10 samples/ 7 min (Volatile matter)

  • ASTM:16 samples / 60 min~90 min (Moisture);16 samples/ 230 min (America Standard Ash), 10 samples / 7 min (ASTM Volatile matter 1),10 samples / 36 min (ASTM Volatile matter 2)

Sample weight

0.5~1.1g

Max. power

4kw

Furnace Temp

Room temp. to 1000℃

Furnace Heating

Resistance Wound

Temperature Calibration

Standard thermocouple

Temp.control precision

±2℃ (moisture) ±5℃ (ash, volatile matter)

Gas Flow Rate

Moisture:Nitrogen or Air 2~4(Furnace Volume /min)

Volatile matter:Nitrogen 2~4(Furnace Volume /min)

Power requirement

220VAC ±10%, 50/60Hz

Gas requirement

Air/Nitrogen/Oxygen

Gas Pressure

Air 5 to 6 bar (75 to 90 psi)

Minimum Gas Purity

Air/Nitrogen/Oxygen 99.5%; dry, oil-free

Sample weighing

Under normal temp.

Test Temperature

  • Moisture 105℃

  • Ash 815℃

  • Volatile matter 920℃~950℃

  • Can be customized

Humidity

<80%

Dimensions

845 x 563 x 596mm

Weight

142 kg

Operational Control

Windows®-based software on external PC/Windows7/ Windows 10

Advance Calculation

Yes

Analysis Report

Yes

Statistics Report

Yes

System Monitor

Yes

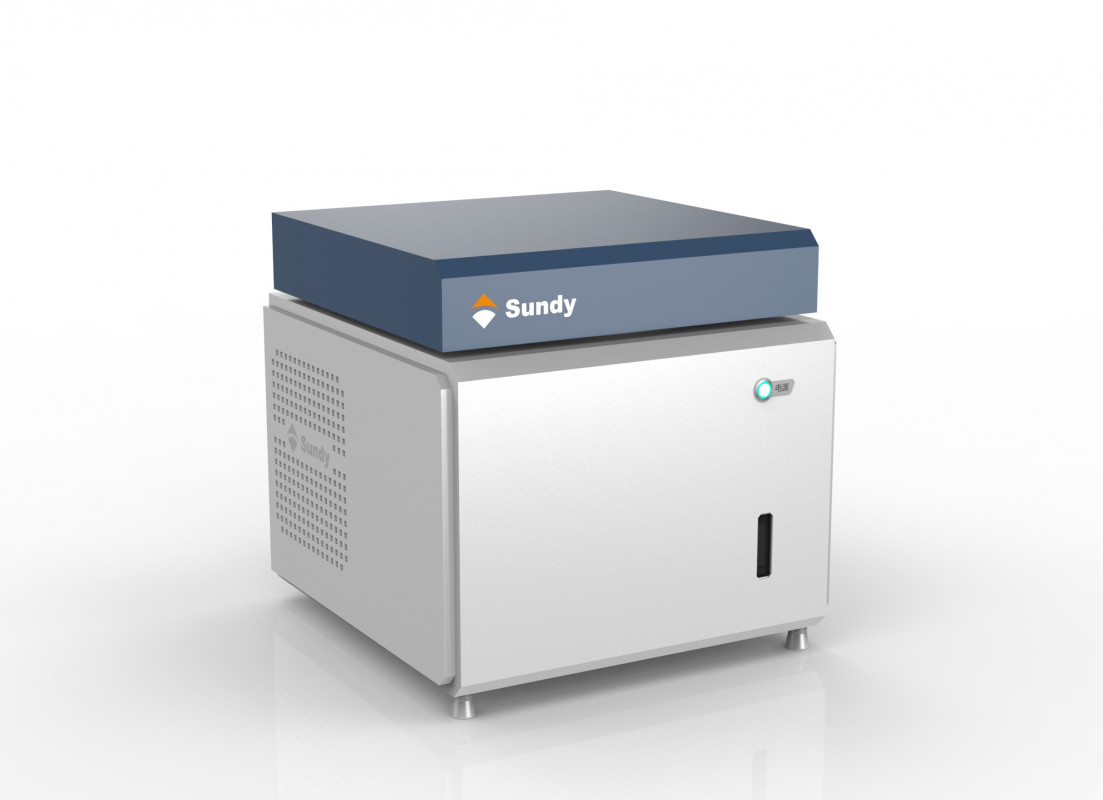

SDTGA5000a Proximate Analyzer

SDTGA5000a can be used to determine the moisture, ash and volatile matter as well as calculation of fixed carbon and calorific value in coal, coke, calcined petrol coke and other solid biomass fuel.

16 samples for moisture & ash, 10 samples for volatile matter
Furnace temperature can up to 1000℃
