당사 (주)연진에스텍의 사파이어 샘플 도가니는 고가의 수입산 대비 동등 이상의 스펙으로 국내에서 제작되는 고순도의 저렴한 열분석 샘플 팬입니다. 알루미나 팬 보다 순도가 더 좋고 밀도가 높아 재사용 회수가 더 증가됩니다.
특히 알
루미나 팬보다도 화학적으로 더 안정합니다. 철(Fe)과 니켈과 같은 금속의 용융 시험에도 추천됩니다.

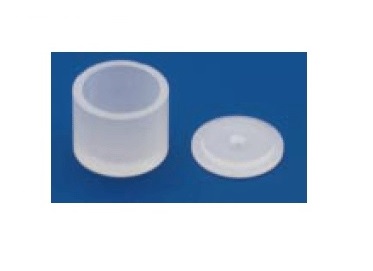

사용하고 있으신 sample crucible의 크기와 TGA 기기 제조사를 확인하셔서 아래표의 Order number로 문의해 주시면 견적 시 용이합니다. Pan과 lid 한 세트로 공급되며, 최소 구매 수량은 50 세트(1pkg)입니다.
-

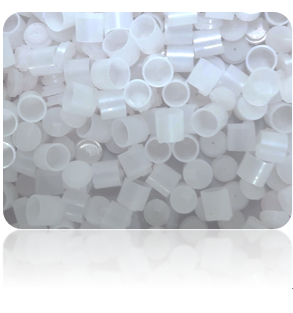

Mono-crystalline Alumina (Al2O3) crucibles for most of thermal analyzers
-
Higher Purity and Higher Density: Increased detection possibility of transition temperatures
-
Easy cleaning and more repeated operation available
-
Very suited in various kinds of sample (R&D, Q/A, QC)
-
High quality grade but Economical cost
-
Made by Ceramic expert
-
Various crucibles available on request
Specification
|
Alumina content |
% |
99.99% |
|
Compressive Strength (20 ˚C) |
Mpa |
2400 |
|
Specific density |
g/cm3 |
3.88 |
|
Expansion Coefficient (20-1000 ˚C). |
˚C |
8.0×10-6 |
|
Thermal conductivity |
W/mK |
30(20 ˚C) |
|
Bending Strength |
20 ˚C |
370 Mpa |
|
1000˚C |
160 Mpa |
For Mettler Toledo
|
Order No. |
Dimension |
Equipment available for |
Remarks |
Unit Price |
MOQ |
|
M-TC6025-M |
Ø6.0mm x H2.5mm |
TGA/DTA, TGA/DSC |
Translucent Alumina pan (Sapphire crucibles), 30 ㎕ |
KRW 22,400 |
50 |
|
M-TC6045-M |
Ø6.0mm x H4.5mm |
TGA/DTA, TGA/DSC |
Translucent Alumina pan (Sapphire crucibles), 70 ㎕ |
KRW 22,400 |
50 |
For TA Instruments
|
Order No. |
Dimension |
Equipment available for |
Remarks |
Unit Price |
MOQ |
|
M-TC6540-T |
Ø6.5mm x H4.0mm |
Q500/Q600 SDT, TGA/DSC |
Translucent Alumina pan (Sapphire crucibles) |
KRW 22,400 |
50 |
For Netzsch
|
Order No. |
Dimension |
Equipment available for |
Remarks |
Unit Price |
MOQ |
|
M-TC6840-N |
Ø6.8mm x H4.0mm |
DSC404C, DTA404PC, STA409PC, STA449C |
Translucent Alumina pan (Sapphire crucibles) |
KRW 22,400 |
50 |
For Setaram
|
Order No. |
Dimension |
Equipment available for |
Remarks |
Unit Price |
MOQ |
|
M-TC5040-P |
Ø5.0mm x H4.0mm |
DSC, TGA |
Translucent Alumina pan (Sapphire crucibles) |
KRW 22,400 |
50 |
|
M-TC5040-P |
Ø5.0mm x H4.0mm |
DSC, TGA |
Translucent Alumina pan (Sapphire crucibles) |
KRW 22,400 |
50 |
|
M-TC5050-S |
Ø5.0mm x H5.0mm |
TGA, DTA, STA, DSC |
Translucent Alumina pan (Sapphire crucibles) |
KRW 22,400 |
50 |
For Shimadzu
|
Order No. |
Dimension |
Equipment available for |
Remarks |
Unit Price |
MOQ |
|
M-TC6025-M |
Ø6.0mm x H2.5mm |
TGA/DTA, TGA/DSC |
Translucent Alumina pan (Sapphire crucibles), 30 ㎕ |
KRW 22,400 |
50 |
