High temperature microscopy & spectroscopy stage
-
30°C - 1200°C
-
Φ12 mm sample area
-
Closed chamber with gas purging capability. Optional Vacuum-tight sample chamber model
Description

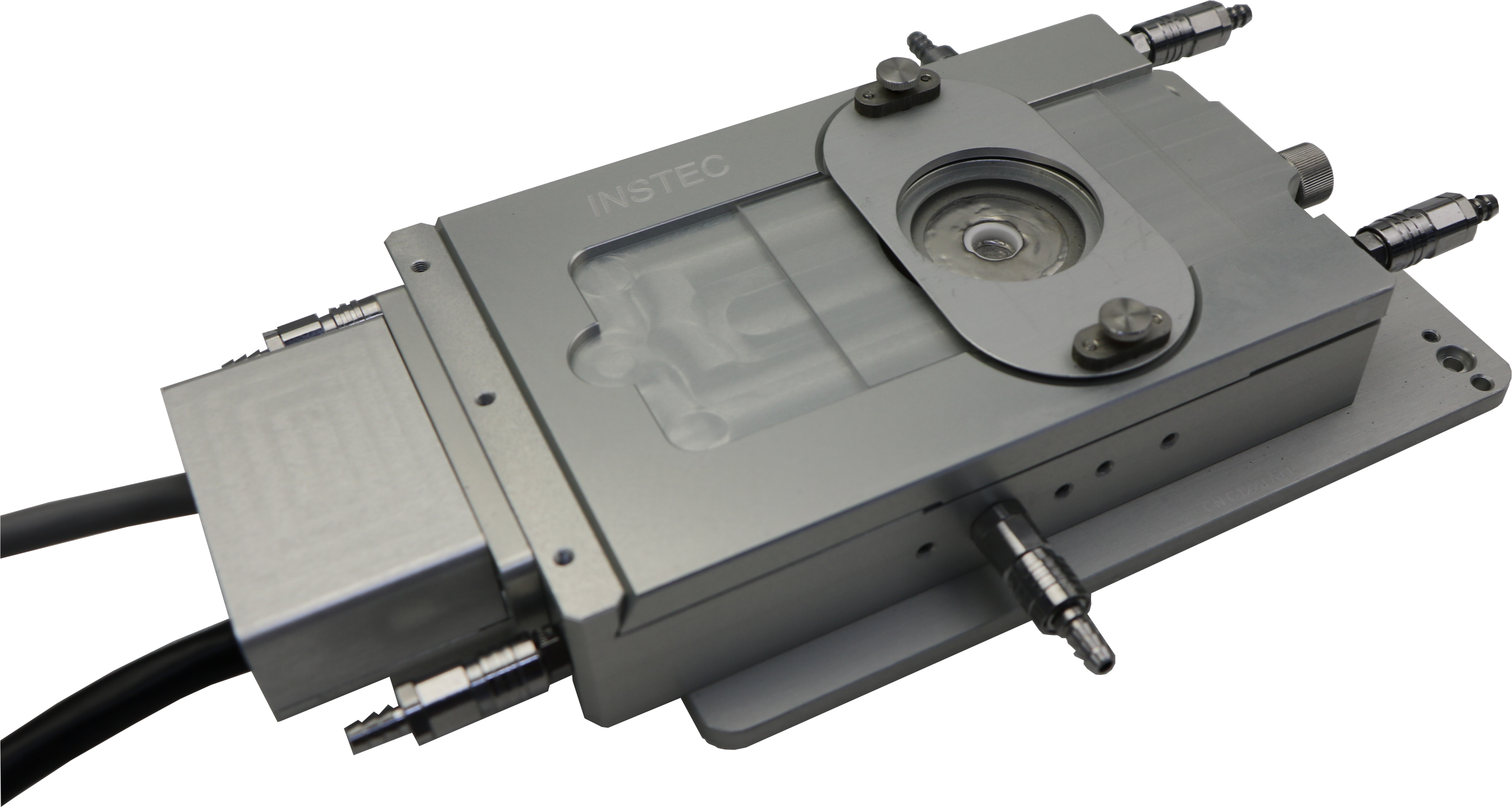

Instec's HS1200 Hot Gas-Tight stage can heat samples to 1200°C and are ideal for the study of ceramics, metallurgy, geology and high temperature materials. Electrical feedthroughs and custom sample areas are also available. The HS1200G's gas-tight sample chamber helps to prevent sample oxidation at high temperatures.
Thermal Features
|
Temperature Control |
mK2000 with programmable precision switching PID method |
|
Thermal Block |
Ceramic |
|
Sample Thermal Cover |
Removable Inner sample cover with additional window |
|
Temperature Minimum |
30°C (active cooling not available) |
|
Temperature Maximum |
1200°C |
|
Temperature Sensor |
S Type Thermocouple |
|
Maximum Heating Rate |
+200°C per minute at 100°C |
|
Minimum Heating and Cooling Rate |
±0.5°C per minute |
|
Temperature Resolution |
0.1°C |
|
Temperature Stability |
±1°C |
|
Power supply |
Universal power input |
|
Software |
Windows software to record and export temperature-time data |
Optical Features
|
Optical access |
Reflection and transmission capability |
|
Optical windows |
Removable and exchangeable windows permit full-spectrum transparency |
|
Minimum Objective Working Distance |
9.0 mm |
|
Minimum Condenser Working Distance |
15.5 mm |
|
Top Window |
38 mm diameter |
|
Top Viewing Angle |
±24.5° from normal |
|
Transmission Aperture |
2.0 mm diameter |
|
Bottom Viewing Angle |
±10.0° from normal |
Structural Features
|
Sample Area |
Φ12 mm x 5 mm |
|
Atmosphere Control |
Gas purging capability to control humidity, condensation, and oxidation |
|
Frame Cooling |
Integrated frame cooling with optional chiller system |
|
Window and objective protection |
Cooling by purge air |
|
Mounting |
Horizontal and vertical mounting capability |
|
Frame Dimensions |
200 mm x 120 mm x 30 mm |
|
Weight |
1350 g |
