Qualitative & Quantitative Analyzer

HPLC+GC-MS, GC-MS, LC-MS, IC, FTIR, XRD, UV/Vis Spectrometer

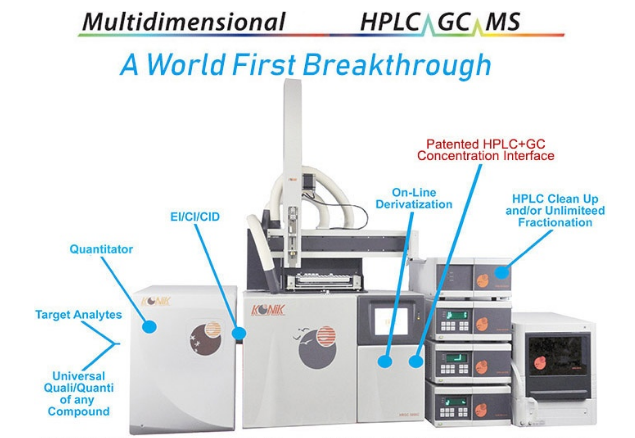

Multi-dimensional HPLC+GC-MS Triple Analyzer

MS-MS의 장점을 가져와 complex matrix 내 유기 화합물 검출에 사용되는 신기술 - Multidimensional HPLC+GC-MS !



GIBNIK HPLC+GC COUPLING INTERFACE

본 시스템의 핵심은 특허받은 HPLC + GC 커플링 인터페이스입니다.

몇 가지 국제 특허를 가진 원천적인 기술의 인터페이스는 모든 종류의 크로마토그래피에서 사용되는 극성 또는 무극성의 HPLC solvent를 선택적으로 제거합니다. 특히 앞서 다른 HPLC+GC는 실패했던 reverse phase HPLC에서도 사용됩니다. 분석하고자 하는 물질은 전매 특허의 방식으로 처리된 TENAX ®와 같이 검증되고 신뢰할 수 있는 양적인 흡탈착 물질에 붙잡히게 됩니다. 이러한 trapping 과정이 진행되는 동안 HPLC solvent는 특허를 받은 interface의 fluid dynamics에 의해 선택적으로 제거됩니다.



View Animation



SUMMARY OF FEATURES FOR KONIK MULTIDIMENSIONAL HPLC+GC-MS

Multi-dimensional HPLC+GC-MS Triple Analyzer

A WIDE RANGE OF PROVEN ADVANTAGES

  • Simplify and/or eliminate tedious sample preparation steps
  • Minimize use of solvents
  • Guarantee sample integrity
  • Shorten dramatically total analysis time
  • Reduce total cost per analysis
  • Lower detection limits
  • Determination of both target and unknowns by easy NIST search
  • Handle non-volatiles by the On-Line Derivatization option
  • Increase selectivity and lower detection limits by proper derivatization
  • On-line automatic fractionation/clean up of complex mixtures
  • Absolute quantitative analysis without reference standards



A WORLD OF PROVEN APPLICATIONS

  • Petroleum fingerprinting, fractions, chemicals and petrochemicals
  • Target and emerging environmental pollutants
  • Constituents of foods and beverages
  • Pharmaceuticals and bioactive substances
  • Life Sciences and clinical chemistry
  • Toxicology and forensics,…
  • R&D in all fields to determine at easy target as well as unknowns



KONIK MULTIDIMENSIONAL HPLC+GC-MS

TECHNICAL SPECIFICATIONS



DETECTOR OPTIONS

The system allows the use of any GC detectors as well as Mass Selective Detectors. In consequence GIBNIK offers two types of systems the GIBNIK HPLC+GC K2 with standard GC detectors (FID, ECD, FPD,…) and the GIBNIK HPLC+GC-MS K2Q2 coupled to the innovative KONIK GC-MS Q2 Mass Spectrometer



OTHER UNIQUE PATENTED OPTIONS

ON-LINE, SEQUENTIAL, HPLC MULTI-FRACTION ANALYZER

Designed to optimise HPLC separations by fractionation in accordance to the sample complexity. It allows analysing automatically each optimised fraction of interest in sequence



ON-LINE DERIVATION SYSTEM

This accessory allows using any reagent and solvent mix to obtain any desired on-line derivative of any compound or compound grouping. This facilitates increasing volatility of High MW substances not amenable to be analysed by GC, as well as to increase specifity and/or detection limits by the use of a wide range of special reagents capable of tagging molecules for their specific and unequivocal analysis



ABSOLUT AND UNIVERSAL QUANTITATION

Eliminates the use of reference standards



GYBNIK policy is to deliver all these Multidimensional Systems only as “Turn-Key-Purposely Engineered-Customized-Tailor Made Analysers”.
Occasionally a prior feasibility study is required. Please contact us so we can discuss in depth your problem(s)(need(s) and provide you an specific proposal and quotation.



ROBOKROM® Multimodal Autosampler





For more information please request latest catalogue and/or application notes to info@yeonjin.com
