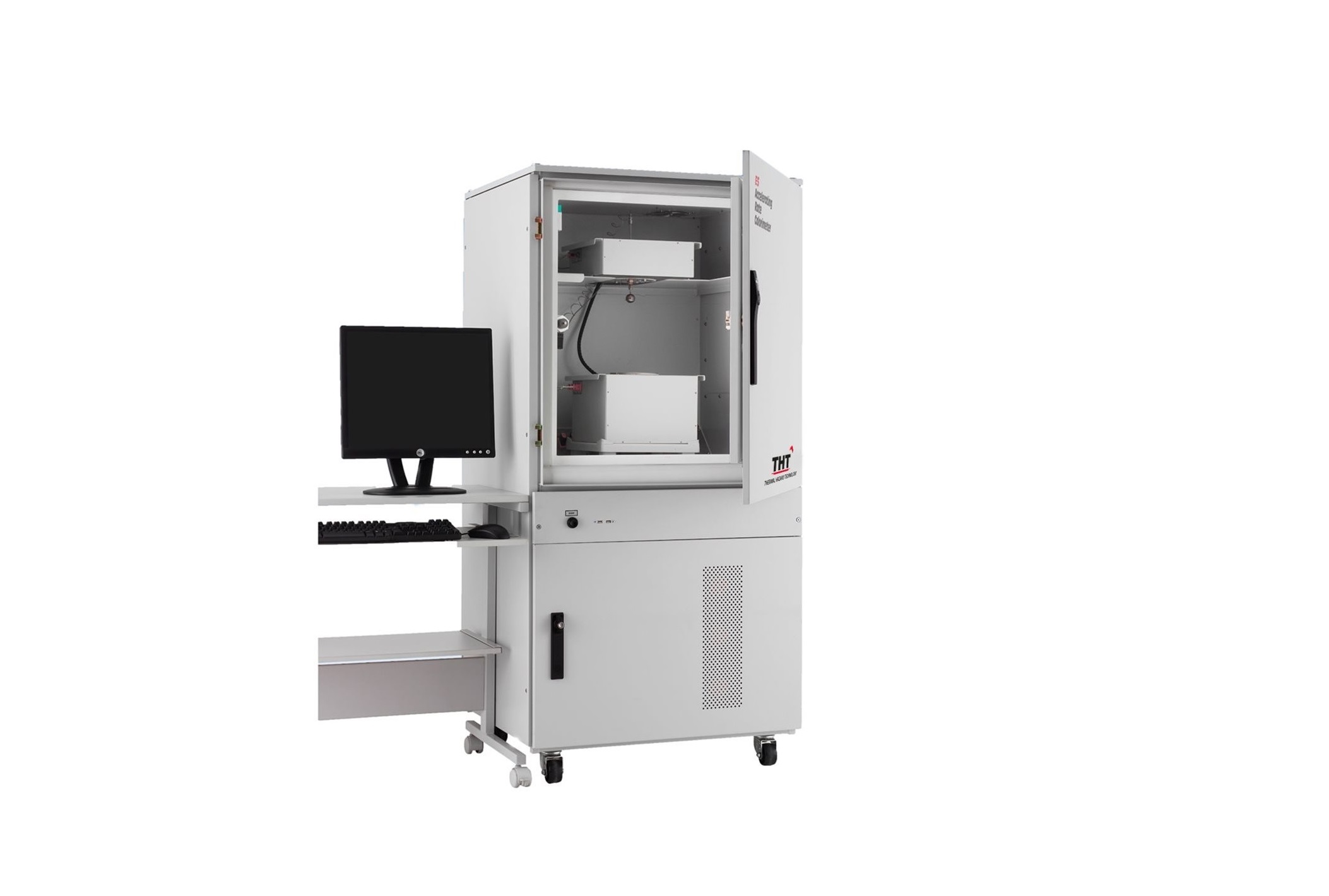

es-ARC 가속속도열량계 Accelerating Rate Calorimeter

THT사의 ARC는 Heat-Wait-Seek 원리를 최초로 채용한 열량계로써, 단열환경에서 화학반응에 의한 최대의 발열온도(runaway temperature)를 읽어 온도와 압력생성에 대해 정량적으로 분석하고 열안전성에 관한 최적의 조건을 구현하는 단열열량계 (adiabatic calorimeter)로써, 화약과 폭약, 반응성이 높은 물질 (high energetic material)의 폭주온도와 폭발압, 자가발열 온도를  측정하는 기기입니다. 본 장비는 내구성이 탁월해 견고하면서도 0.002 °C/min의 고감도 측정이 가능합니다.



Devised by Dow Chemical Company in the 1970's, an explosion at a Dow UK site led to commercialisation of ARC technology. The Chemical Processing Industry has been safer from its first availability in 1980! The ARC has specific features and advantages that make it unique and preferable to all other technologies that were available at this time - and today 30 years later this technology is still the number one choice for most people focusing in the area of quantifying exothermic reactions, effect of heat upon materials and simulating runaway reactions.

THT has played the major role in ARC technology development and has continuously kept ARC technology in manufacture. THT has produced up-to-date instruments and has extended and enhanced the technology as requested, by users. THT has worked with users worldwide to understand their needs and to develop new products and applications.



Key Aspects of the ARC:

  • Excellent adiabatic control

  • Universal sample type

  • Ultimate sensitivity

  • Ease of use

  • Simplified data analysis

  • Worldwide data acceptance

  • Safe in use

Plus:

  • Additional larger calorimeters

  • Options for battery applications

And Latest Features:

  • Greater stability
  • Higher sensitivity
  • Wider temperature range
  • More versatile additional isothermal modes
  • Remote operation worldwide
  • Virtual technician
  • Endotherms/Exotherms
  • Zero reflux
  • Gas flow
  • Low Phi containers
  • Fast tracking calorimeter
  • Pressure compensation calorimeter
  • Correction to phi = 1
  • Heat capacity measurement
  • Automatic data conversion to... Joules, Watts, moles/g




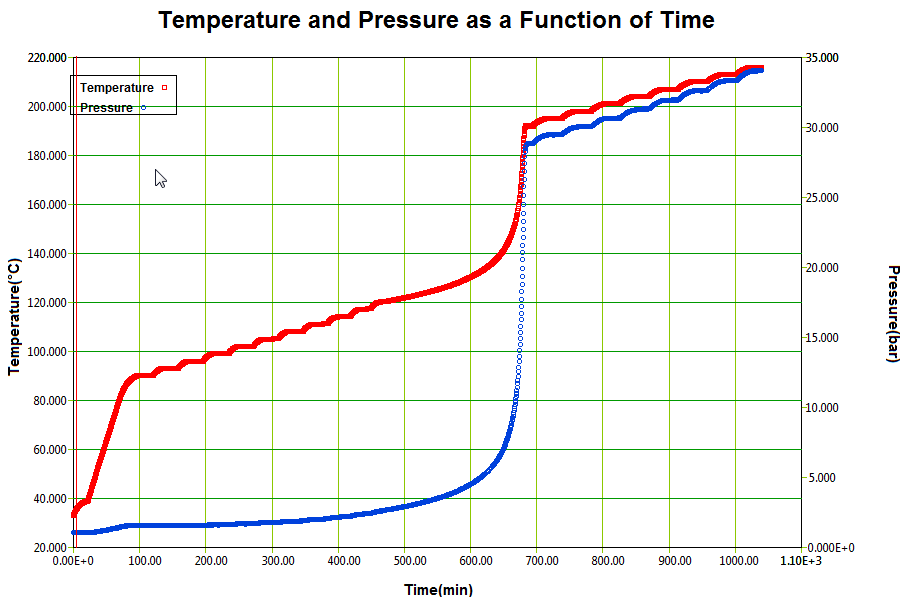

An understanding of the energy release from chemical reactions is vitally important in the chemical industries. When the heat generated by a chemical process is greater than the heat removal then the temperature will rise with perhaps catastrophic effect. On a laboratory scale, only an adiabatic calorimeter can reliably evaluate such conditions as it reproduces the worst case, zero heat loss conditions of a large scale process. The Accelerating Rate Calorimeter is the most widely used and respected adiabatic calorimeter in the world and provides a quantitative analysis of the temperature and pressure generation for a process. This allows optimum conditions to be employed whilst ensuring inherently safe operation. Developed by The Dow Chemical Company, the Accelerating Rate Calorimeter is in use in over 200 laboratories around the world and the re-engineered instrument offered by Thermal Hazard Technology extends the ease of use and application of the original. In addition to a strong and durable calorimeter and enclosure, options allow for vent sizing, gas sampling, battery safety testing and low temperature testing. The semi-automated data analysis yields temperature and pressure rates, self-heat rate, time to maximum rate and temperature of no return amongst other parameters.

The Accelerating Rate Calorimeter is in use in a huge range of chemical processing areas, from explosives to detergents and from batteries to resins. It can detect exotherms from as little as 0.005 °C/min, corresponding to as little as 100W/tonne. It can test all manner of materials from high energy solids to low energy gases for safety applications in processing, storage or transportation.



Specification

Design

  • Fully compliant to ASTM E1981 (all revisions)
       Standard calorimeter
  • Calorimeter design to Dow Patent No 4439048 of 1980 and 1984
  • 9cm diameter; 10cm depth calorimeter
  • 2.5cm thick copper, 8 heaters, 6 measuring, control and safety thermocouples
  • Thermocouple resolution 0.001°C, Precision better than 0.2%, Accuracy 0.7%
  • Adiabatic Control to 0.01°C

Temperature range

  • 0-600°C temperature range (-40°C with Cryogenic System Unit CSU option)
  • Tracking Rate to 20°C/min
  • Fast Tracking Option (FTO) upto 400°C/min

Sensitivity (applicable to new calorimeters only)

  • 0.02°C/min
  • Potential to achieve 0.002°C/min to 200°C, 0.01°C/min to 500°C

Pressure

  • Pressure Range 0-200 bar (or specify range to 700 bar with alternative transducers), Resolution 0.005bar, Precision 0.02%, Accuracy 0.05%

Safety

  • 0.25 cubic meter containment vessel (Blast Box);
  • 3mm reinforced Steel, Proximity Switch, Door interlock;
  • Automated Fume Extraction facility

Control Modes

  • Adiabatic; Ramping, Isothermal modes, True Isothermal, Isoperibolic, Step Isothermal.

Sample Holders

  • Hastelloy, titanium, stainless steel, aluminium, glass, ARC bombs (9cm3), low phi bombs (65cm3) tube bombs (1cm3) special open or closed holders for any battery type.



Customer Support

Installation & Training - 1 week, acceptance test

Support Guarantee 1 year, free of charge phone and email support over lifetime of instrument

Part Supply 10 years guaranteed

Manuals - Full Operations and Data Analysis Manuals with Tutorials



Software

Control Software

  • National Instruments Labview based ARC-ES Control Software
  • Full on-the-fly change of test conditions
  • Full on-the fly operation

Remote User facilities

  • Ability to transfer operation on system to any allowed PC over network or internet

Virtual Technician facility

  • Set up multiple tests in one method

Data Analysis Software

  • National Instruments Labview based ARCCAL+ analysis software
  • Features include: Graphical and tabulation of raw data including Phi Corrected TMR plots
  • Data Conversion to Enthalpy, Power, Gas Generation
  • Kinetic Modelling for thermodynamic and kinetic data analysis
  • Phi Correction through kinetic modelling
  • Report generation in Microsoft Word, Excel, HTML
  • Analysis of 9 concurrent data sets; 3 analyses on each data set, merge all datasets to a single plot.



Operation / Ambient Environment

Environmental Requirements

  • Temperature 5-45°C, Humidity 0-95%
  • Air supply (Optional for rapid cooling post test)
  • Water (needed only for CSU)
  • Electrical Specification
  • Single Phase Electrical Supply 100-250V, 16A 3.5kW
  • Instrument conforms to CE, UL, VCCI, CSA standards

Full range of options available



Want or need to do more?

  • Ultimate functionality. THT offers an unrivalled choice of options. Many are listed below.



Options for chemical applications

ADU High pressure dosing, steel syringe, dosing to 150bar, 0-20ml, software controlled

ASU Stirring and Agitation 120-500rpm, 0-200cps viscosity

CSU Extend the temperature range from -40 to with the cryogenic option

FHU Ultimate fume extraction (30 cubic meters per minute), to meet all Pharma regulations

MDU Low cost manual dosing unit (0-10ml at ambient pressure)

SSM Manual gas collection, 50ml collection vessel

SSS Gas collection, 1 sample – automatic collection at any temp or on test completion, 50ml collection vessel

SSU Gas collection, 4 samples – automatic collection at any time, temp, pressure, 50ml collection vessel

GSS Safe gas release during or after test through Scrubber tank, software controlled

PRU Automated pneumatic lid lifting

VSU+ Vent Size testing; Tempering, Blow Down and Hydrodynamic tests, software controlled



For oil exploration applications

MPFO Medium pressure flow and control for EOR Oilfield sample studies, gas flow up to 200 bar

HPFO High Pressure flow and control for EOR Oilfield sample studies, gas flow up to 400 bar
