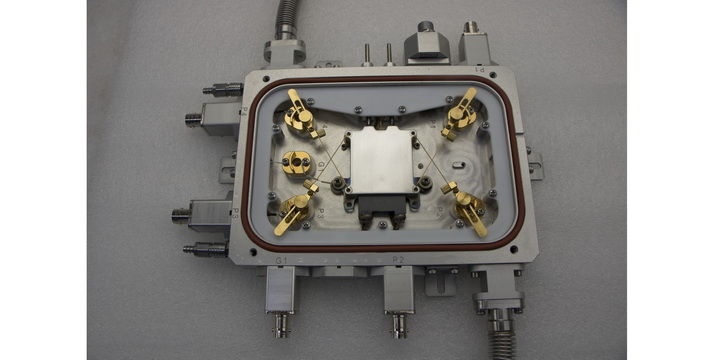

HCP421V-PM Flagship mini electrical probe stage

  • Compact design to fit on Raman, optical microscope, reflection FTIR microscope
  • -190°C - 400°C with liquid nitrogen cooling option
  • 28 mm × 30 mm sample area
  • Sealed chamber with vacuum capability
  • 4 independent electrical probes with manual positioning
  • Optional triaxial connection for pA measurement
  • Optional extra feedthrough



Thermal Features

Temperature Control

mK2000 with programmable precision LVDC PID method to minimize electrical noise

Thermal Block

Silver plate for superior thermal uniformity

Temperature Minimum

-190°C (with optional liquid N2 cooling)

Temperature Maximum

400°C

Temperature Sensor

100 Ω Platinum RTD

Maximum Heating Rate

+80°C per minute at 100°C

Maximum Cooling Rate

-50°C per minute at 100°C

Minimum Heating and Cooling Rate

±0.01°C per minute

Temperature Resolution

0.01°C

Temperature Stability

±0.05°C (> 25°C),±0.1°C (< 25°C)

Power Supply

Universal power input

Software

Windows software to record and export temperature-time data



ELECTRICAL FEATURES

Electrical Probes

DC electrical probe options in tungsten-rhenium, beryllium-copper, or other materials

Probe Positioning

Manual cantilever probes independently positionable to any point of the sample area before sealing chamber

Connectors

Coaxial, floating, or triaxial BNC connectors

Optional extra feedthrough

Sample Surface

Grounded, floating, or triaxial options

Non-magnetic  Construction

Optional construction with non-magnetic materials for magnetically sensitive samples



OPTICAL FEATURES

Optical Access

Optical access to sample via reflection

Optical Windows

Removable and exchangeable windows permit full-spectrum transparency

Minimum Objective Working Distance

8.5 mm

Top Window

38 mm diameter

Top Viewing Angle

±60.0° from normal

Window Defrost

Integrated external window defrost



STRUCTURAL FEATURES

Sample Area

28 mm x 30 mm

Chamber Height

6.3 mm

Chamber Cover

Quick-access cover with spring-loaded screws

Atmosphere Control

Vacuum capability to control humidity, condensation, and oxidation

Frame Cooling

Integrated frame cooling with optional chiller system

Mounting

Horizontal and vertical mounting capability

Frame Dimensions

180 mm x 130 mm x 27 mm

Weight

1350 g light-weight aluminum body



Instec, Inc. USA
