UV 광경화 시스템 (UV Curing Systems)

Spot curing, Flood curing, LED curing, Conveyor curing

Uvitron LED Curing Systems

Uvitron LED 경화 시스템은 고강도 급속 경화를 위한 멀티 스펙트럼 타입의 수명이 긴 냉각출력  UV LED를 사용합니다. 열에 민감한 어플리케이션에 이상적이며,  스펙트럼이 작은 범위에서 구동하도록 설계되었습니다.



SkyRay - LED Flood Curing System

  • Curing area: 5" x 5"
  • Up to 2200 mW/cm2 Intensity @ 1"
  • Cool-output Long-life LEDs available in 4 spectral types
  • Integrated Lamp head, power supply and controller
  • Microprocessor control of time & intensity / Remote control & reporting via PC or PLC
  • Integrated Lamp head, power supply and controller





SkyRay + Rayven

  •  Curing area: 5" x 5"
  •  Up to 2200 mW/cm2 Intensity @ 1"
  •  Cool-output Long-life LEDs available in 4 spectral types
  •  Microprocessor control of time & intensity / Remote control & reporting via PC or PLC
  •  Shielded benchtop curing chamber
  •  Adjustable shelf height
  •  Forced air w/ louvers, channeled from lamp head

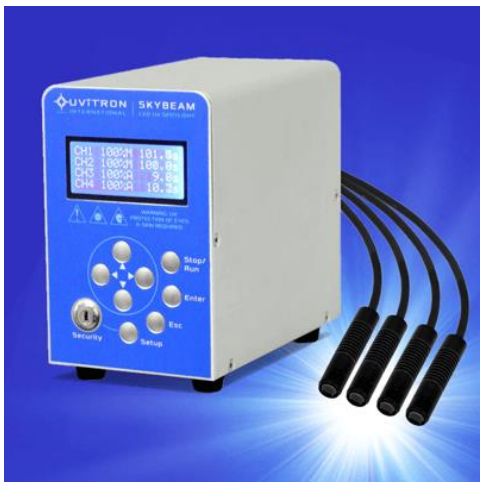

SkyBeam - LED Spot Curing System

  • Curing Area: From 3mm to 15mm
  • Intensity: From 1,000 to 13,000 mW/cm2
  • Long-Life Flexible Light Guides, 4 Wavelengths
  • 4 Independent Irradiation Channels
  • Cool Operation, Built-In Power Supply, Security Key Switch







SkyRay + UV Conveyor 40

  • 9 inch wide belt, 5 inch cure width
  • Up to 2200 mW/cm2 Intensity @ 1"
  • Variable speed, up to 12 ft/min - Digital speed display
  • Adjustable lamp height & full UV shielding
  • Dual spectrum lamp capable
  • Benchtop or w/ optional mounting stands



Uvitron LED Curing Systems

Download Brochure
