High-intensity, large-area LED flood curing system

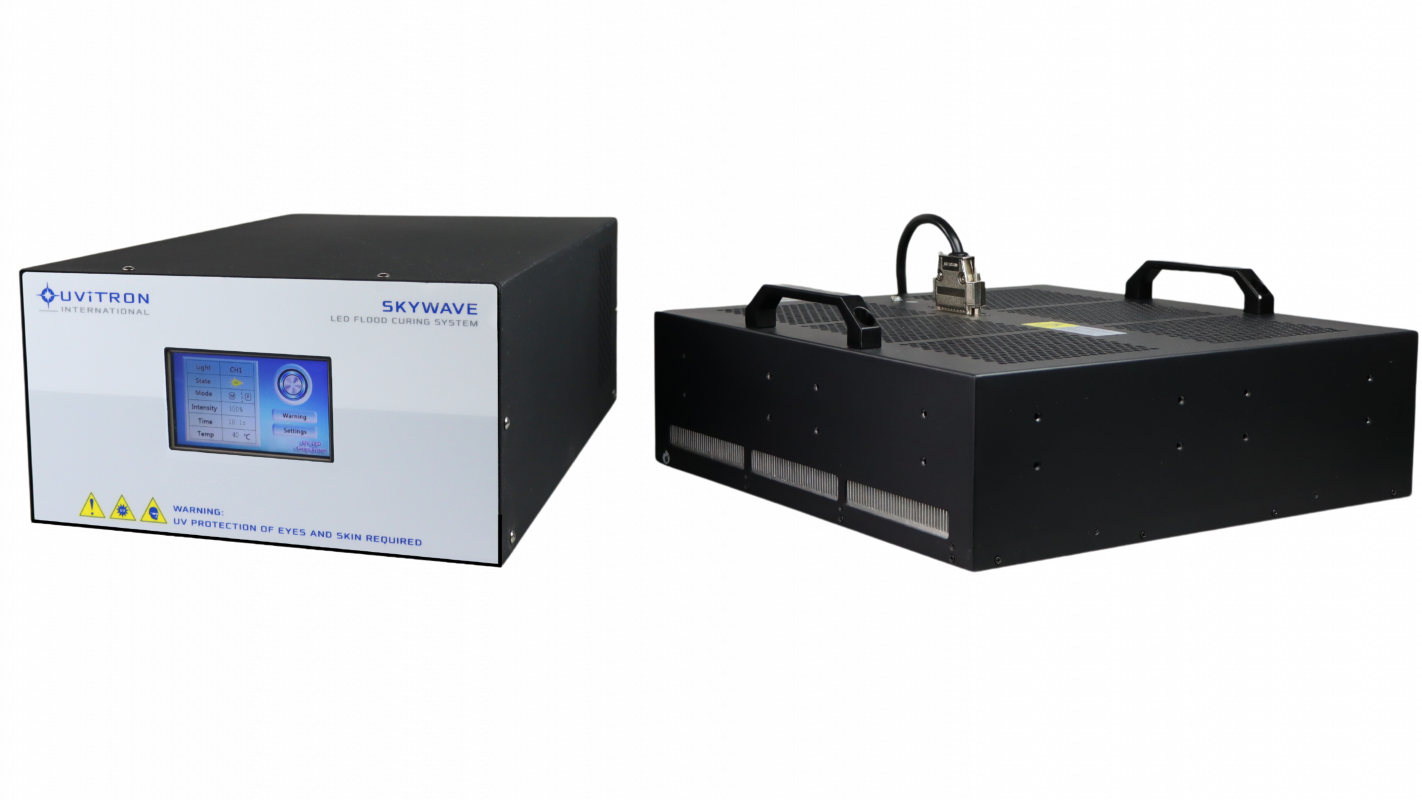

The SkyWave UV LED Curing System is equipped with a high-powered UV LED lamp that delivers cool, high-intensity light that is evenly distributed across a 14 x 14″ curing area. The system features a robust touch screen interface that simplifies operation and provides access to a variety of settings including power control monitoring and system alarms. Housed in a black metal casing, the system is designed for durability and ease of use in industrial settings. It includes advanced cooling mechanisms to maintain optimal temperatures and stability during operation. Additionally, the SkyWave offers comprehensive error warnings and lock settings to ensure secure and reliable performance for various industrial applications.

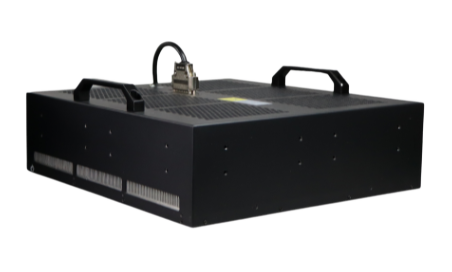

High-Powered UV LED Lamp: The SkyWave features a UV LED lamp that delivers potent irradiation intensity. This high-performance lamp is designed for effective and rapid curing, ideal for a variety of industrial applications.

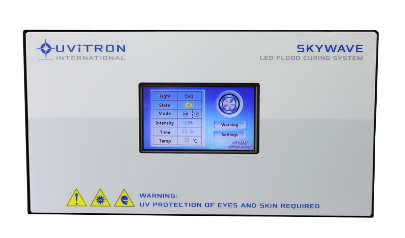

Touch Screen Interface: The system includes an advanced touch screen interface that simplifies the management of operational settings. This user-friendly interface allows operators to easily adjust settings, monitor performance, and troubleshoot with ease.
Advanced Cooling System: The SkyWave boasts an advanced cooling system designed to maintain all components at optimal temperatures, significantly extending the lifespan of the unit and enhancing its performance reliability.
Comprehensive Error Warnings and Security Features: These include overheat warnings, LED fault alerts, and built-in password protection, which help in maintaining operational integrity and preventing unauthorized access or accidental mishandling of the equipment.
Durable and Functional Design: Built to withstand the rigors of industrial environments, the SkyWave curing system features a durable black metal casing that not only protects the internal components but also complements its functional design.
SkyWave LED flood curing system Specifications |
|
|---|---|
|
System Type |
LED Flood Curing System |
|
Part No. |
UV5330 |
|
Input Voltage |
200-240V AC, 50-60Hz Range |
|
Curing Area |
13.78' x 13.78' |
|
Weight |
33.07 lbs (Controller & Lamp) |
|
Controller Size (L x W x H) |
17.7' x 11.8' x 6.3' |
|
Lamp Size (L x W x H) |
15.8' x 15.8' x 4.7' |
SkyWave LED flood curing system Part Numbers |
||
|---|---|---|
| Part No. |
Wavelength [nm] |
Details |
|
UV5330-365 |
365 |
SkyWave with 365 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual |
|
*UV5330-385 |
385 |
SkyWave with 385 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual |
|
*UV5330-395 |
395 |
SkyWave with 395 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual |
|
UV5330-405 |
405 |
SkyWave with 405 nm UV LEDs, Includes UV/IR protective glasses, power cord and manual |
SkyWave LED flood curing system Accessories
|
Part No. |
Item |
Details |
|---|---|---|
|
UV2875-H |

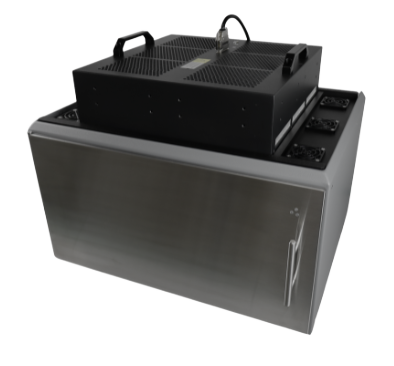

Rayven Quad Shielding Curing Chamber |
Provides full shielding and shutter door interlock |
|
UV5309 |
Mounting Bracket Kit |
Used to mount SkyWave UV LED Curing System |
|
UV4704 |
USB to RS232 Adapter/Converter |
Connect to PC or PLC for Remote Control |
|
Multiple |
Power Cords |
Multiple types available |
|
Multiple |
UV Curing Tray |
Stainless steel non-stick surface |
|
UV4006 |
LEDCure Radiometer |
Dynamic range 0.4-40W/cm2. Available in L365, L385, L395 or 405. |
|
UV2231 |
UV/IR Protective Safety Glasses |
Sport contour, 3.0 shade |
|
UV0495 |
UV/IR Protective Safety Glasses |
OTG (fit over prescription eyewear), 3.0 shade |
|
UV1889 |
UV Protective Face Shield |
Life-up face shield ideal for maximum Uv/light protection, 3.0 shade |
