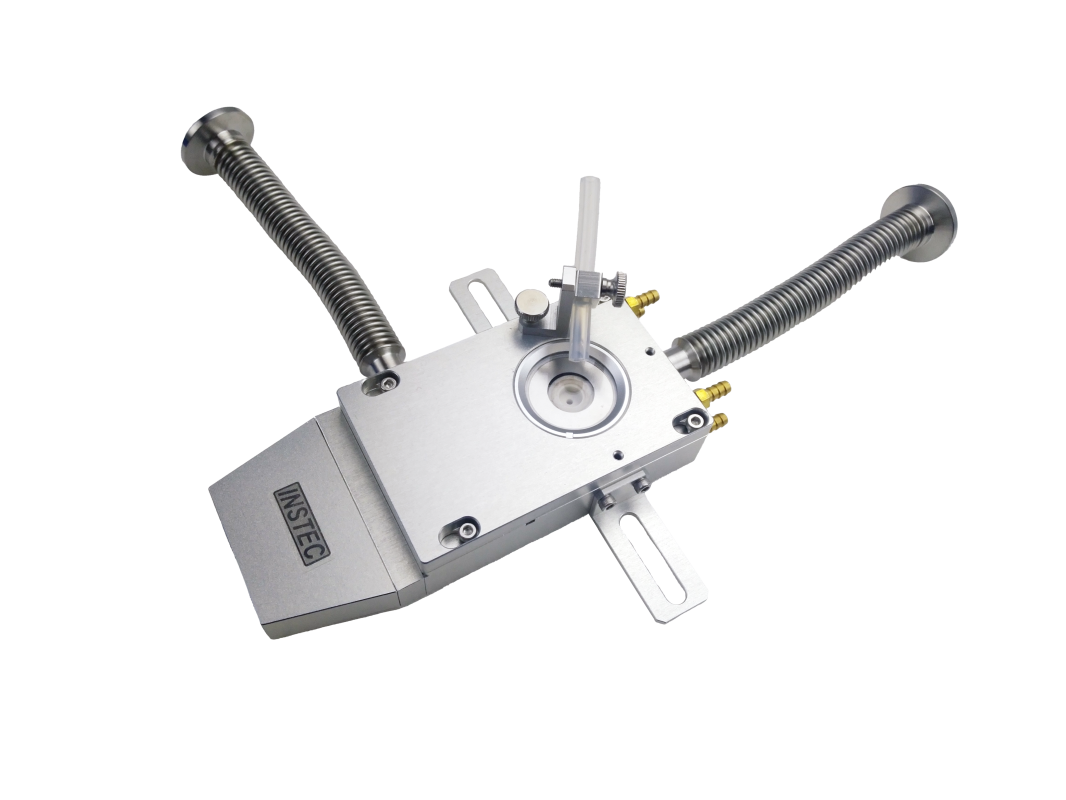

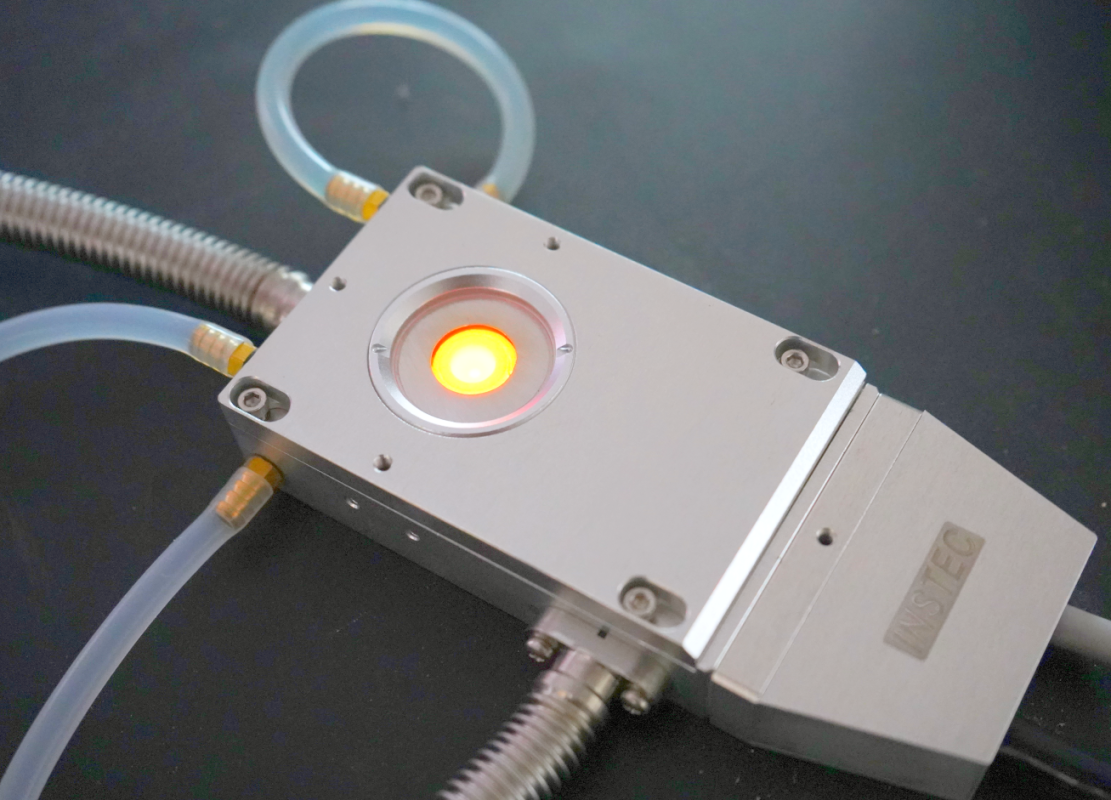

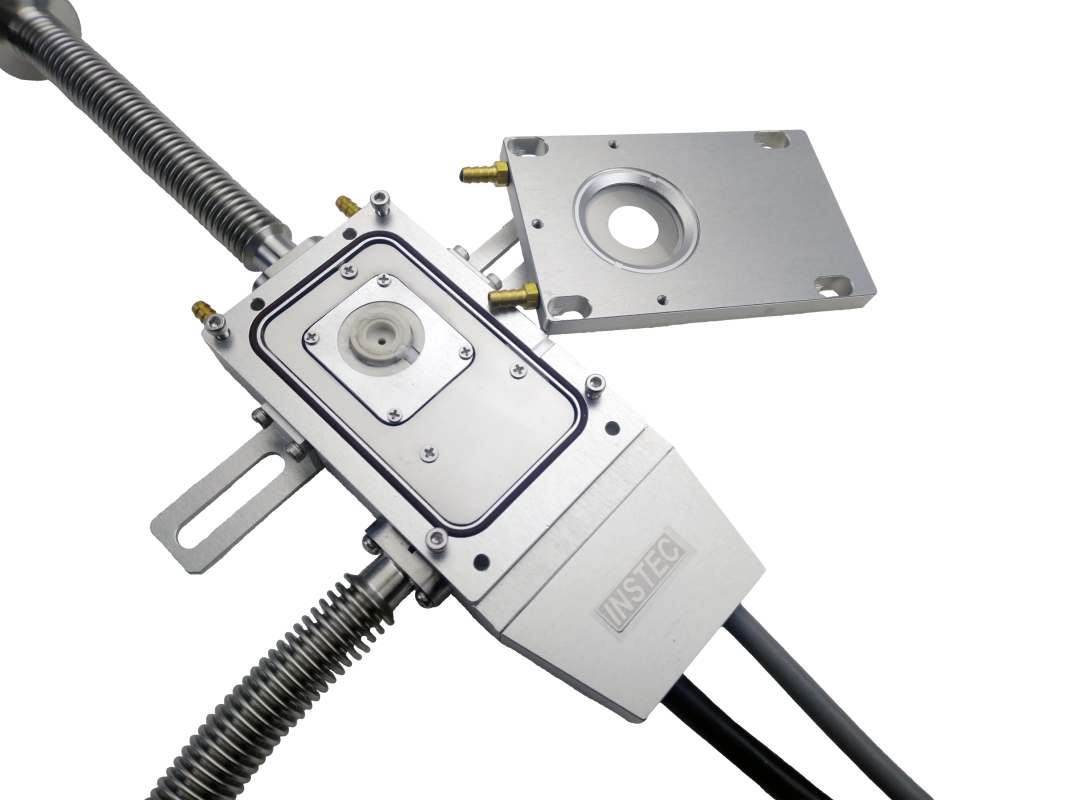

High temperature microscopy & spectroscopy stage
-
30°C - 1400°C
-
Ø 7.5mm sample area
-
Sealed chamber with vacuum and gas purging capability
THERMAL FEATURES
|
Temperature Control |
mK2000 with programmable precision switching PID method |
|
Thermal Block |
Ceramic for high temperature work |
|
Temperature Minimum |
Room Temperature (active cooling by means of purge gas) |
|
Temperature Maximum |
1400°C (Otionally 1500°C) |
|
Temperature Sensor |
S Type Thermocouple |
|
Maximum Heating Rate |
+100°C/Min ≤800°C, +20/Min >800°C |
|
Minimum Heating and Cooling Rate |
±0.5°C per minute |
|
Temperature Resolution |
0.1°C |
|
Temperature Stability |
±1°C |
|
Power supply |
Universal power input |
|
Software |
Windows software to record and export temperature vs.time data |
OPTICAL FEATURES
|
Optical access |
Reflection and transmission capability |
|
Optical windows |
Rotatable to prevent fogging up Removable and exchangeable windows |
|
Minimum Objective Working Distance |
6.8 mm (with 4mm chamber height) or 8.8 mm (with 6mm chamber height) |
|
Minimum Condenser Working Distance |
11.75 mm |
|
Top Window |
28 mm diameter |
|
Top Viewing Angle |
±45° from normal |
|
Transmission Aperture |
2 mm diameter |
|
Bottom Viewing Angle |
±21.6° from normal |
STRUCTURAL FEATURES
|
Sample Area |
7.5 mm diameter |
|
Chamber Height |
4.0 mm |
|
Atmosphere Control |
Sealed chamber with vacuum capability to control humidity, condensation, and oxidation Includes 1x stainless steel vacuum bellows + 1x machinable aluminum blank by default. Secondary vacuum bellows available by request. |
|
Frame Cooling |
Integrated frame cooling with optional chiller system |
|
Window and objective protection |
Cooling by purge air |
|
Mounting |
Horizontal and vertical mounting capability |
|
Frame Dimensions |
141 mm x 62 mm x 25.3 mm |
|
Weight |
1350 g |
